Graphite Components for Ion Implantation in Semiconductor Manufacturing

Graphite Components for Ion Implantation in Semiconductor Manufacturing

Graphite plays a crucial role in ion implantation, a critical process step in semiconductor manufacturing. Its unique combination of properties makes it suitable for various applications within ion implanters.

Why Graphite?

High Thermal Conductivity: Dissipates heat generated by ion beam interaction, preventing overheating and damage to wafers and components.

Low Outgassing: Minimizes contamination of the vacuum environment, which is crucial for high-purity implantation.

Chemical Inertness: Resists reaction with corrosive process gases and prevents unwanted reactions that can contaminate the wafer.

Electrical Conductivity: Facilitates charge dissipation and prevents charge build-up on components exposed to the ion beam, which can cause arcing and process instability.

Machinability: Can be easily machined into complex shapes with high precision to meet specific design requirements.

Cost-Effectiveness: Compared to other high-temperature materials like ceramics or refractory metals, graphite is often a more cost-effective option.

Radiation Resistance: Withstands the harsh radiation environment within the ion implanter, maintaining its structural integrity and functionality over time.

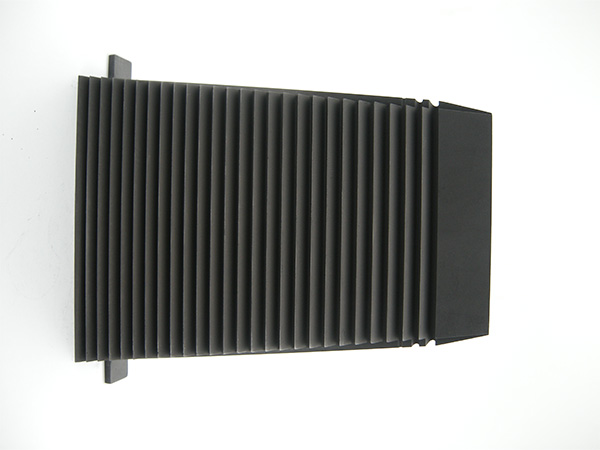

Common Graphite Components in Ion Implanters:

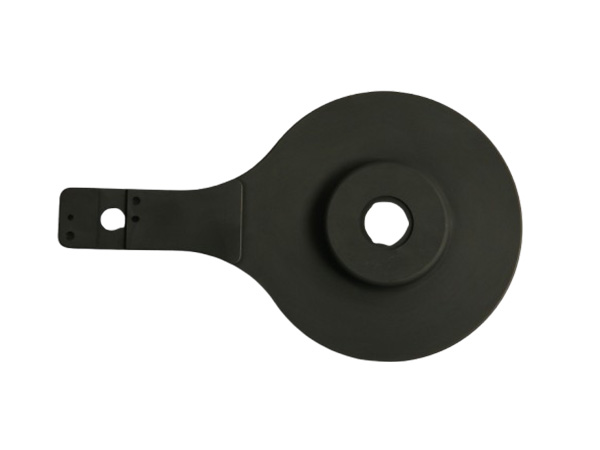

Target Holders/Wafer Supports:

Function: Securely hold wafers during implantation and provide a uniform thermal path for heat dissipation.

Requirements: High precision machining for consistent wafer positioning, excellent thermal conductivity, and low particle generation.

Considerations: Sometimes coated with silicon carbide (SiC) or pyrolytic graphite (PG) for improved purity, hardness, and resistance to sputtering.

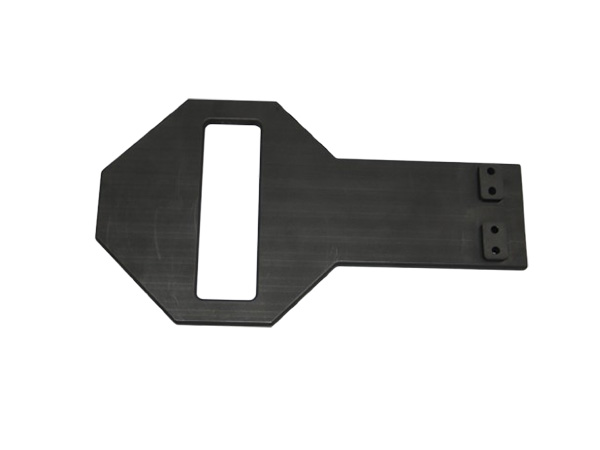

Beamline Components (Slits, Collimators, Apertures):

Function: Define and shape the ion beam, ensuring the desired ion species and energy are directed onto the wafer.

Requirements: High thermal conductivity to handle the intense heat load from the beam, precise dimensions, and resistance to sputtering.

Considerations: May be cooled directly with water or other coolants. Erosion and sputtering are key concerns, influencing material selection and component lifetime.

Faraday Cups:

Function: Measure the ion beam current to monitor and control the implantation dose.

Requirements: High electrical conductivity to accurately collect the ion current, ability to withstand high temperatures, and resistance to sputtering.

Considerations: Design must minimize secondary electron emission, which can lead to inaccurate current measurements.

Arc Chambers/Ion Sources:

Function: Generate the ions to be implanted. Graphite may be used as electrodes or other components within the arc chamber.

Requirements: High temperature resistance, resistance to sputtering, and compatibility with the ion source chemistry.

Considerations: The selection of graphite grade and coating (if any) depends heavily on the specific ion source design and operating conditions.

Shielding:

Function: Shield sensitive components from stray ions and radiation.

Requirements: Good radiation absorption properties, ease of machining, and cost-effectiveness.

Gas Distribution Components:

Function: Deliver process gases (e.g., dopant gases) to the ion source.

Requirements: Chemical inertness to prevent reactions with process gases, ability to withstand temperature variations, and precise gas flow control.

Graphite Grades and Considerations:The specific grade of graphite used depends on the application's requirements. Key properties to consider include:

Purity: High-purity graphite minimizes contamination. Look for specifications like parts-per-million (ppm) levels of metallic impurities.

Density: Higher density graphite generally has better thermal conductivity and mechanical strength.

Grain Size: Finer grain size can improve surface finish and reduce particle generation.

Coefficient of Thermal Expansion (CTE): Matching the CTE of graphite to other materials in the system can minimize thermal stress.

Mechanical Strength: Sufficient strength is needed to withstand mechanical stresses and handling.

Coatings for Graphite:

Coatings are often applied to graphite components to improve their performance and extend their lifespan. Common coatings include:

Silicon Carbide (SiC): Improves hardness, wear resistance, and resistance to sputtering.

Pyrolytic Graphite (PG): Improves purity, impermeability to gases, and anisotropy of thermal conductivity.

Chemical Vapor Deposition (CVD) Coatings: Used for various purposes, including improved corrosion resistance and diffusion barriers.
