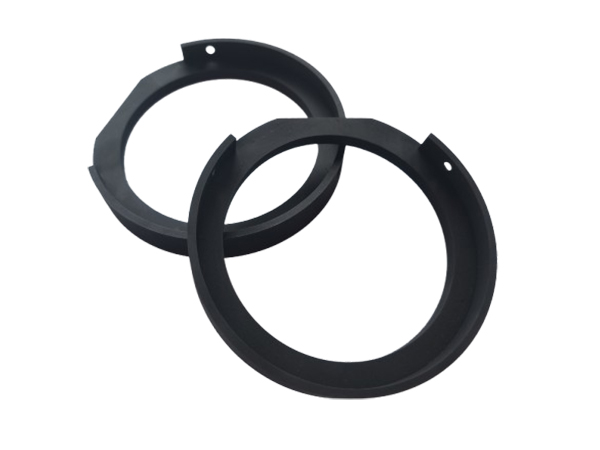

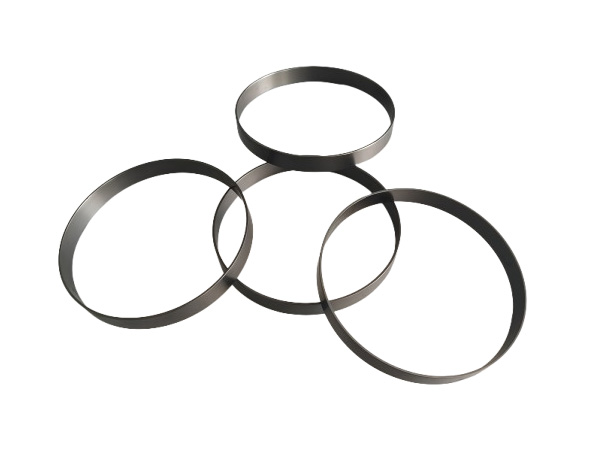

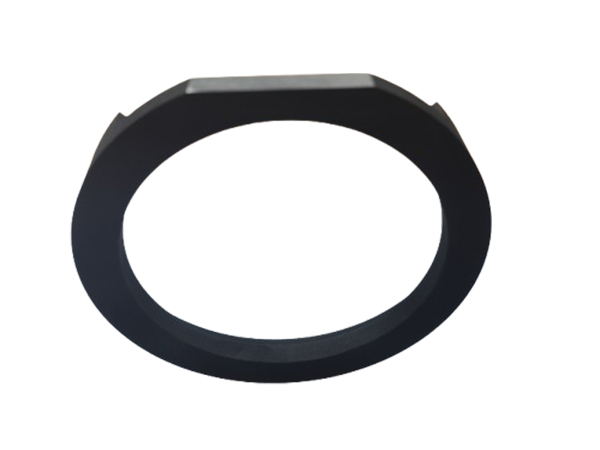

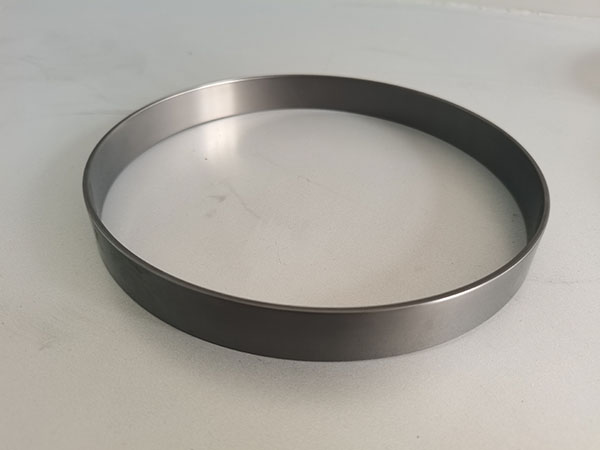

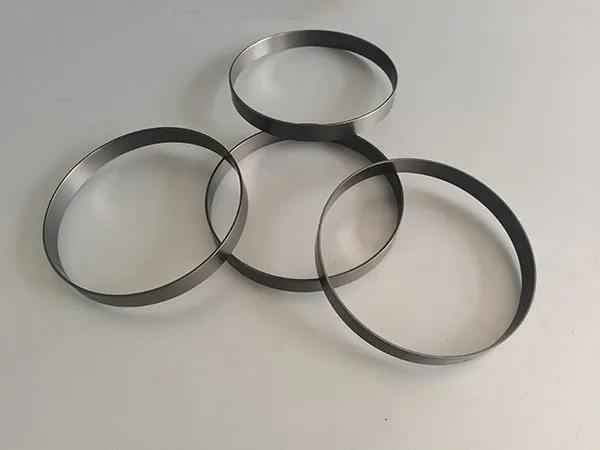

Graphite Ring for Semiconductor Industry

Graphite rings are crucial components in the semiconductor industry, used in various applications due to graphite's unique properties:

Key Properties of Graphite for Semiconductor Use

High Purity: Semiconductor processes are extremely sensitive to contamination. Graphite used must be exceptionally pure (often exceeding 99.999% purity) to avoid introducing unwanted elements into the silicon wafers or other materials.

High Thermal Conductivity: Graphite efficiently conducts heat, which is vital for controlling temperature during processes like chemical vapor deposition (CVD) and rapid thermal processing (RTP).

Excellent Chemical Resistance: Graphite resists attack from many corrosive chemicals used in semiconductor fabrication, including acids, alkalis, and etchants.

High Temperature Stability: Many semiconductor processes occur at elevated temperatures, and graphite retains its strength and properties well at these temperatures.

Low Thermal Expansion: Minimizing thermal expansion is critical for maintaining precise dimensions and alignment within equipment as temperature changes occur.

Lubricity: Graphite is a self-lubricating material. In some applications, this reduces friction and wear.

Machineability: Graphite can be machined into complex shapes with tight tolerances, allowing it to be tailored to specific equipment designs.

Common Applications of Graphite Rings in Semiconductor Manufacturing:

Susceptors in Epitaxy Reactors (CVD, MBE):

Function: Graphite rings or platforms (susceptors) hold silicon wafers during epitaxial growth. They are heated to very high temperatures, and the thermal uniformity of the susceptor is crucial for achieving uniform film deposition across the wafer.

Requirements: High purity, excellent thermal conductivity, uniform heating, resistance to process gases (e.g., silane, ammonia). They are often coated with silicon carbide (SiC) to improve their surface properties and reduce particle contamination.

Wafer Carriers/Holders/Supports:

Function: Graphite rings can act as carriers or supports for wafers during various processing steps (e.g., etching, implantation, cleaning).

Requirements: High purity, dimensional stability, minimal outgassing to prevent contamination. The design must ensure secure wafer holding without damaging the delicate surface.

Crucibles for Crystal Growth:

Function: In the Czochralski (CZ) or float zone methods for growing single-crystal silicon ingots, graphite crucibles hold the molten silicon.

Requirements: High purity, resistance to molten silicon, ability to withstand high temperatures for extended periods. The crucible's shape and thermal properties influence the crystal's quality.

Heating Elements:

Function: Graphite can be used as a resistance heating element in furnaces and other equipment due to its electrical conductivity and high-temperature resistance. Rings or other shapes can be part of the heater design.

Requirements: Controlled electrical resistance, high-temperature stability, resistance to oxidation (in air, graphite oxidizes at high temperatures, so a protective atmosphere is often required).

Seals and Bearings:

Function: In vacuum systems and other equipment, graphite can be used as a sealing material or as a bearing due to its self-lubricating properties and resistance to chemicals.

Requirements: Dimensional accuracy, low outgassing, chemical compatibility with process gases or liquids.

Nozzles:

Function: Used in some processes that involve gas delivery, particularly etching.

Requirements: Precise geometry, high purity, good corrosion resistance.

Manufacturing Considerations for Graphite Rings:

Raw Material Selection: The type of graphite (e.g., isostatically molded, extruded) and its purity are critical. Suppliers often provide grades specifically designed for semiconductor applications.

Machining: Graphite is typically machined using CNC equipment to achieve the required precision and surface finish. Dust control is important during machining to prevent contamination.

Purification: Graphite parts may undergo additional purification steps (e.g., high-temperature halogen purification) to remove trace impurities.

Coating: Coatings like SiC (silicon carbide), Pyrolytic Graphite, or other materials are often applied to enhance surface properties, improve chemical resistance, or reduce particle generation. Coatings are applied using CVD or other techniques.

Quality Control: Rigorous quality control measures are essential, including dimensional inspection, purity analysis (e.g., GDMS - Glow Discharge Mass Spectrometry), and surface defect detection.

Cleaning and Packaging: Final cleaning and packaging are performed in a cleanroom environment to ensure that the graphite rings are free from contaminants before they are used in semiconductor equipment.

Key Considerations When Choosing a Graphite Ring Supplier:

Experience: Does the supplier have a proven track record in providing graphite components for the semiconductor industry?

Purity and Material Quality: Can the supplier provide documentation and guarantees regarding the purity and properties of the graphite used?

Machining Capabilities: Can the supplier meet the required dimensional tolerances and surface finish specifications?

Coating Capabilities: If a coating is required, does the supplier have the expertise and equipment to apply it reliably?

Quality Control: What quality control procedures are in place to ensure that the graphite rings meet the required specifications?

Cleanliness: What measures are taken to ensure that the graphite rings are free from contaminants?

Cost: What is the cost of the graphite rings, and how does it compare to other suppliers?

Lead Time: How long will it take to receive the graphite rings after placing an order?
