Graphite Hot Zone for Monocrystalline Silicon Pulling

Graphite Hot Zone Introduction

A graphite hot zone is a crucial component in the Czochralski (CZ) method for pulling single-crystal silicon ingots. Here's a breakdown of its function, design considerations, and why graphite is used:

Function of the Graphite Hot Zone for Monocrystalline Silicon Pulling

The primary purpose of the graphite hot zone is to:

Create and Maintain a Uniform Temperature Distribution: The hot zone is responsible for generating and maintaining a very precise and stable temperature profile within the crucible. This is essential for controlled melting of the silicon and proper solidification at the solid-liquid interface.

Shield and Insulate the Crucible: It acts as a thermal barrier, reducing heat loss from the silicon melt and directing heat flow to the appropriate areas of the crucible.

Control the Melt Shape and Solidification Front: The temperature distribution in the hot zone significantly influences the shape of the melt (meniscus) at the top of the crucible and the shape of the solidification front as the crystal is pulled. A flat or slightly convex solidification front is generally desired for high crystal quality.

Support the Crucible: While not its primary function, the hot zone structure often provides physical support to the quartz crucible.

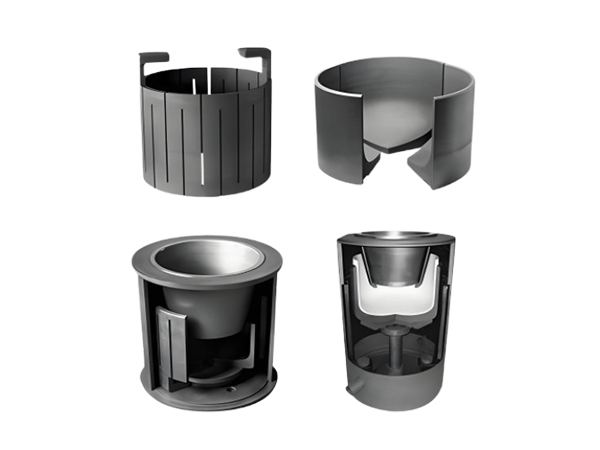

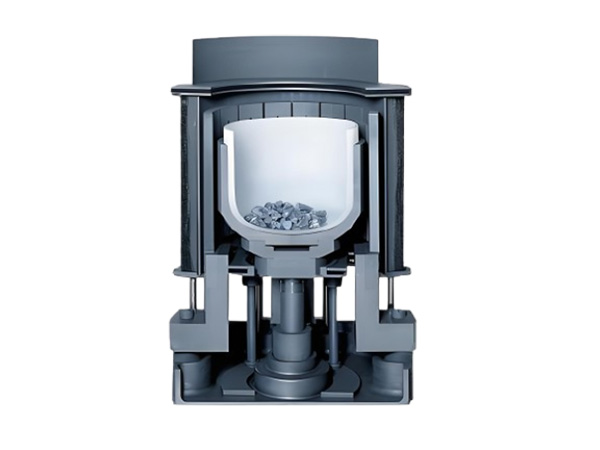

Key Components of a Graphite Hot Zone (Typical Configuration)

Graphite Heater: The primary heat source. This is typically a cylindrical graphite resistance heater that is resistively heated by passing a high current through it.

Different heater designs exist:

Ring Heater: A simple, hollow graphite cylinder.

Mesh Heater: A graphite cylinder with a mesh pattern cut into it to improve temperature uniformity and flexibility.

Slotted Heater: A graphite cylinder with slots cut into it to control heat distribution.

Multi-zone heater: Graphite heaters comprised of several independently controlled heating zones.

Graphite Insulation: Layers of graphite felt, graphite board, or other high-temperature insulation materials surrounding the heater. These minimize heat loss and create the desired temperature gradient. The number of layers and their thickness are critical design parameters.

Graphite Susceptor (Crucible Holder): A graphite structure that supports the quartz crucible. It may be separate from or integrated with the heater. The susceptor's design influences heat transfer to the crucible.

Graphite Top Shield/Reflector: A graphite plate or assembly positioned above the crucible. It reflects heat back into the melt and helps control the temperature at the melt surface. It is often adjustable to fine-tune the temperature profile.

Graphite Bottom Shield: Similar to the top shield, but positioned below the crucible. It helps control the temperature gradient in the melt.

Why Graphite?

Graphite is the dominant material choice for hot zones in silicon crystal growth due to its unique combination of properties:

High-Temperature Stability: Graphite sublimes (transitions directly from solid to gas) at very high temperatures (around 3600°C), making it suitable for the high temperatures required to melt silicon (1414°C).

Thermal Conductivity: Graphite has relatively good thermal conductivity, allowing for efficient heat transfer and even temperature distribution. The thermal conductivity can be tailored through the grade of graphite used.

Electrical Conductivity: Graphite is electrically conductive, allowing it to be used as a resistance heater when a current is passed through it.

Low Vapor Pressure: Graphite has a low vapor pressure at operating temperatures, minimizing contamination of the silicon melt. However, it's important to use high-purity graphite to minimize impurities.

Machinability: Graphite is relatively easy to machine into complex shapes, allowing for the fabrication of intricate hot zone designs.

Cost: Compared to some other high-temperature materials, graphite is relatively cost-effective.

Chemical Inertness: Graphite is generally chemically inert, meaning it doesn't readily react with silicon or the inert gases (argon) typically used in the crystal growth process.

Design Considerations for a Graphite Hot Zone

Designing an effective hot zone is a complex engineering task. Key considerations include:

Temperature Profile: The desired temperature profile within the melt and at the solid-liquid interface. This is crucial for controlling crystal quality (dislocation density, impurity segregation). Finite element analysis (FEA) is often used to model and optimize the temperature distribution.

Heat Loss: Minimizing heat loss through radiation and conduction to improve energy efficiency.

Crucible Size and Geometry: The size and shape of the crucible dictate the dimensions of the hot zone.

Pulling Speed: The rate at which the crystal is pulled influences the thermal environment and must be considered in the design.

Rotation Rates: The crucible and crystal rotation rates also affect the temperature gradients and melt mixing.

Gas Flow: The flow of inert gas (usually argon) within the crystal growth chamber influences heat transfer and can remove volatile impurities.

Material Purity: Using high-purity graphite is essential to minimize contamination of the silicon crystal. Impurities in the graphite can diffuse into the melt and degrade crystal quality. This is particularly important for dopants used to create the desired electrical properties of the semiconductor.

Mechanical Stability: The hot zone structure must be mechanically stable at high temperatures and withstand thermal stresses.

Ease of Maintenance: The design should allow for relatively easy replacement of components, such as the heater and insulation, which degrade over time.
