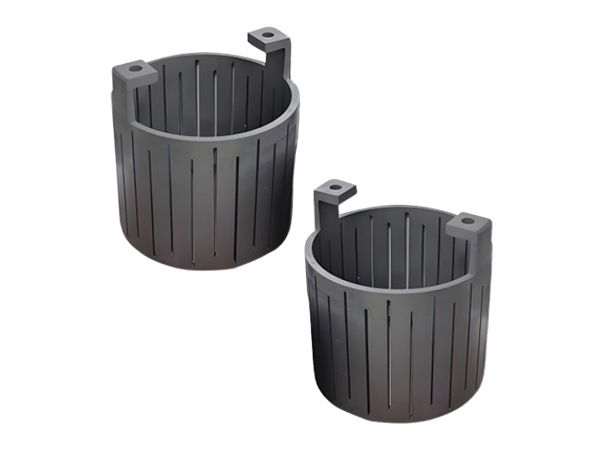

Graphite heaters are a cornerstone technology for producing high-quality monocrystalline silicon ingots using the Czochralski method. While they offer many advantages, careful attention must be paid to their oxidation sensitivity, potential for carbon contamination, and other considerations to ensure reliable operation and high-purity silicon crystal growth. Proper design, materials selection, and process control are essential for success.
Graphite heaters are indeed a common and effective choice for heating crucibles in the Czochralski (CZ) method for pulling monocrystalline silicon ingots. Here's a breakdown of why they're used, their advantages, disadvantages, and considerations for their use:
High-Temperature Capability: Melting silicon requires temperatures around 1414°C (2577°F). Graphite can withstand significantly higher temperatures in an inert atmosphere without melting or significant degradation.
Good Electrical Conductivity: Graphite is a relatively good conductor of electricity, making it ideal for resistive heating. An electric current is passed through the graphite, and the resistance generates heat.
Machinability: Graphite is relatively easy to machine into complex shapes. This allows for the creation of heater geometries that provide uniform and precisely controlled heating of the crucible.
Chemical Inertness (under controlled atmosphere): In an inert atmosphere (typically argon), graphite is quite inert and does not react readily with silicon or common crucible materials (like quartz). This is crucial to prevent contamination of the silicon melt.
Relatively Cost-Effective: Compared to other high-temperature heating materials (like some refractory metals), graphite is generally more affordable.
Precise Temperature Control: By controlling the electrical current through the graphite heater, the temperature can be very accurately and precisely controlled. This is critical for maintaining the proper melt temperature and achieving the desired crystal growth rate and quality.
Uniform Heating: The design of the graphite heater can be optimized to provide very uniform heating across the crucible. This minimizes temperature gradients in the melt, which can lead to defects in the crystal.
Scalability: Graphite heaters can be scaled up to accommodate large crucibles for producing large silicon ingots.
Rapid Heating and Cooling: Graphite heaters can heat up and cool down relatively quickly, allowing for faster process cycles.
Considerations for Graphite Heater Design and Operation:
Heater Geometry: The shape and dimensions of the graphite heater are critical for achieving uniform heating. Sophisticated computer modeling is often used to optimize the heater design.
Common geometries include:

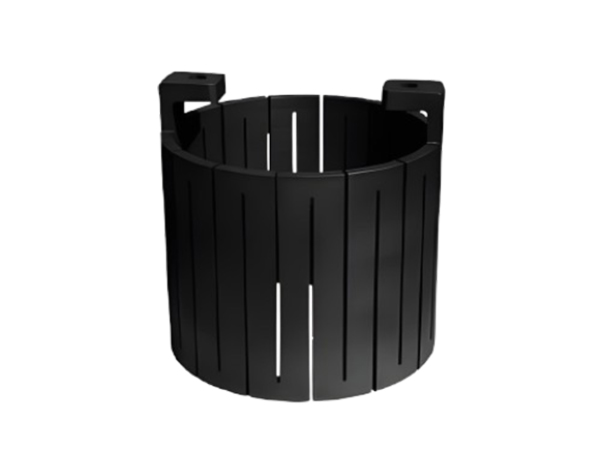

Cylindrical: A simple and common design.
Multi-zone: Heaters with multiple independently controlled heating zones to allow for fine-tuning of the temperature profile within the furnace.
Segmented: Heaters comprised of multiple graphite segments to reduce thermal stress and improve longevity.
Graphite Grade: The purity and grain size of the graphite material are important factors. High-purity graphite with fine grain size is generally preferred for minimizing contamination.
Power Supply: A stable and precisely controllable power supply is essential for maintaining the desired temperature. Typically, a DC power supply is used to prevent skin effect in the graphite.
Atmosphere Control: Maintaining a high-purity inert atmosphere is crucial. The oxygen and moisture content of the argon gas must be carefully controlled. Gas purification systems are often used to remove impurities.
Thermal Insulation: The furnace must be well-insulated to minimize heat loss and improve energy efficiency. Graphite felt, carbon fiber composites, and other high-temperature insulation materials are often used.
Temperature Monitoring: Precise temperature sensors (e.g., thermocouples, pyrometers) are used to monitor the temperature of the heater, crucible, and melt. These sensors provide feedback to the power supply control system.
Crucible Rotation: The crucible is typically rotated during the crystal growth process to promote uniform mixing of the melt and reduce temperature gradients. The heater design must accommodate this rotation.
Pulling Rate: The rate at which the crystal is pulled from the melt is a critical parameter that affects the crystal's diameter, quality, and defect density. The heater needs to provide the necessary heat to maintain a stable solid-liquid interface as the crystal is pulled.
