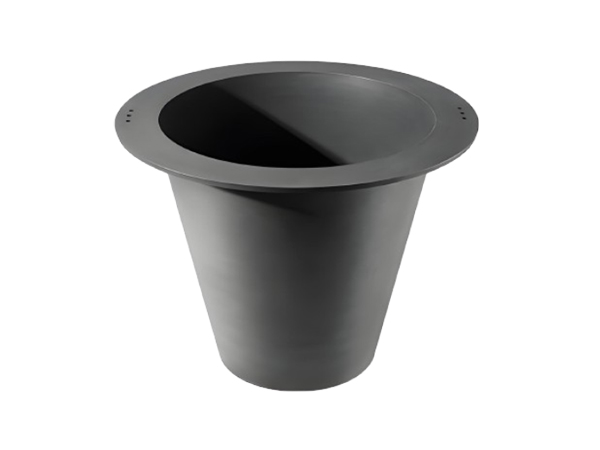

A graphite draft tube is a specialized component used in high-temperature and corrosive environments where its unique properties provide significant advantages. However, its limitations, such as cost and brittleness, must be carefully considered in the design and application.
In general terms, a draft tube is a diverging duct or conduit used to decelerate a fluid flow and convert kinetic energy into pressure energy. Think of it like a funnel, but instead of just directing flow, it's slowing it down and increasing the pressure.
Material: The key is the material: Graphite. Regular draft tubes are typically made of metal or plastic, but for specific applications, graphite's unique properties are crucial. This includes specialized grades of graphite such as isostatic graphite or carbon fiber reinforced graphite depending on the specific process requirements.
High-Temperature Resistance: Graphite is renowned for its ability to withstand extremely high temperatures (in inert environments) without melting or significant degradation. This is often the primary reason for its use.
Chemical Inertness: Graphite is resistant to many corrosive chemicals that would attack metals.
Thermal Conductivity: While not as high as some metals, graphite still offers decent thermal conductivity, allowing for some heat transfer if needed.
Lubricity: Graphite is a self-lubricating material, which can be beneficial in certain applications.
Vacuum Furnaces: In vacuum induction melting (VIM) furnaces, graphite draft tubes can be used to direct and control the flow of molten metal from the crucible to the mold. This is particularly useful when casting alloys that are highly reactive or require precise pouring rates.
High-Temperature Chemical Processing: In certain chemical reactions that require high temperatures and the handling of aggressive chemicals, graphite draft tubes can be used to transport gases or liquids.
Crystal Growth: Graphite components, including draft tubes, can be used in various crystal growth processes (e.g., Czochralski method) where precise temperature control and material purity are essential. The graphite draft tube can help control the thermal gradient in the melt.
Metallurgical Processes: Some metallurgical processes, such as certain refining steps, involve molten metals and aggressive slags. Graphite draft tubes can be used to transfer these materials.
Extreme Temperature Capability: The ability to function at temperatures far exceeding the limits of most metals.
Corrosion Resistance: Resistance to many acids, bases, and other chemicals.
Non-Wetting with Many Molten Metals: Molten metals often do not "wet" graphite, preventing sticking and contamination.
Thermal Shock Resistance (Relative to Ceramics): While graphite can be susceptible to thermal shock, it's generally better in this regard than many ceramic materials that would be used at similar temperatures.
Purity: High-purity graphite can be used to avoid contamination of sensitive materials.
When designing a graphite draft tube, consider the following:
Material Selection: Choose the appropriate grade of graphite based on the specific application (temperature, chemical environment, mechanical stress). Consider isostatic graphite for improved strength and density.
Shape and Dimensions: The shape and dimensions of the draft tube should be optimized to achieve the desired flow characteristics (deceleration, pressure recovery).
Wall Thickness: Ensure sufficient wall thickness to withstand mechanical stresses and thermal stresses.
Support Structure: Design a support structure that can handle the weight of the draft tube and any applied loads.
Sealing: If necessary, provide appropriate seals to prevent leakage. Graphite seals or other high-temperature seals may be required.
Oxidation Protection: If operation in air is unavoidable, consider coatings or other measures to protect the graphite from oxidation. Silicon carbide (SiC) coatings are sometimes used.
Thermal Stress Management: Minimize thermal stresses by using gradual temperature changes and avoiding sharp corners.
