Graphite saggers are essential components in the manufacturing process of lithium-ion battery anode materials, providing a controlled environment for high-temperature heat treatments. Understanding their properties, uses, and limitations is crucial for producing high-quality anode materials.
Graphite: Saggers are typically made of graphite, a crystalline form of carbon. Graphite is chosen because of its:
High Temperature Resistance: It can withstand the high temperatures (often 800-1500°C) required for the heat treatment processes.
Chemical Inertness: It is relatively inert to most chemicals used in anode material processing.
Thermal Conductivity: It has good thermal conductivity, which helps ensure uniform heating of the materials inside.
Electrical Conductivity: While not directly utilized in the sagger itself, the electrical conductivity of graphite is leveraged in some specialized heat treatment setups.
Machinability: Graphite can be easily machined into various shapes and sizes.

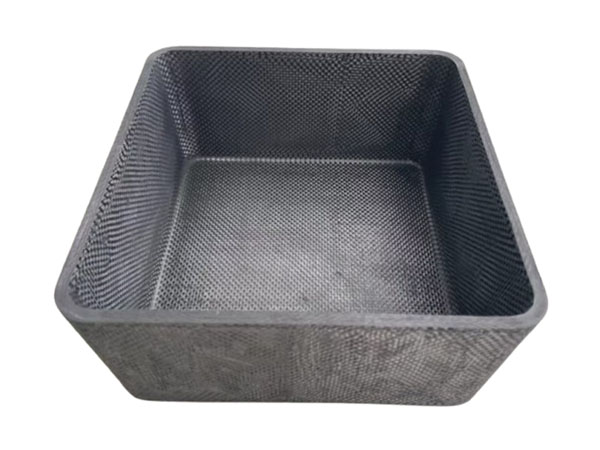

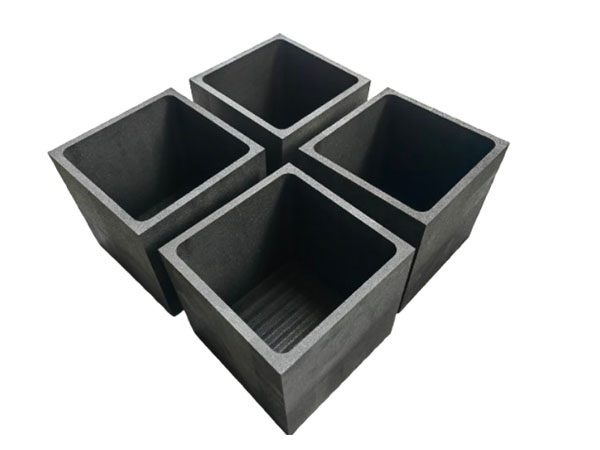

Sagger: A sagger is a box-like container used in furnaces to hold and protect materials during high-temperature heat treatments (sintering, calcination, etc.). It acts as a protective enclosure.
The purpose of a sagger is to:
Contain the Material: Keep the powder or precursor material confined to a specific area.
Control Atmosphere: Provide a controlled atmosphere around the material being processed, often preventing oxidation or other unwanted reactions. Saggers can be sealed or vented depending on the process requirements.
Support the Material: Provide a stable base for the material, preventing it from collapsing or deforming during heating.
Prevent Contamination: Protect the material from contamination from the furnace environment (e.g., impurities from the furnace lining).

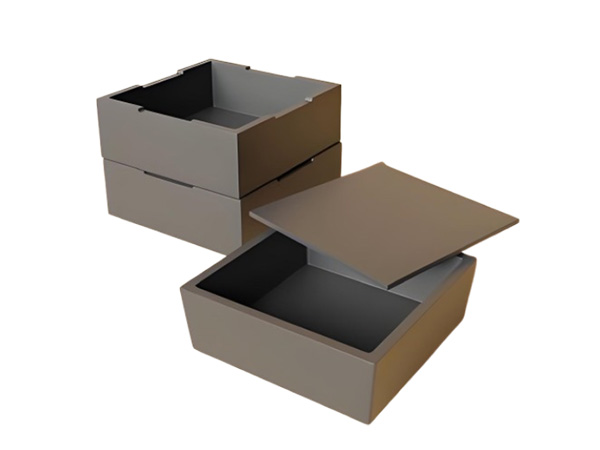

Enable Stacked Processing: Allow multiple layers of materials to be heat-treated simultaneously, improving throughput.
Graphite saggers play a crucial role in the production of anode materials, particularly in the following steps:
Many anode materials start as precursor powders (e.g., metal oxides or other carbon-containing compounds).
Calcination (heating in a controlled atmosphere) is used to decompose these precursors and form the desired anode material structure.
Graphite saggers are used to contain the precursor powder during calcination, ensuring a uniform atmosphere (reducing, inert, or oxidizing) and preventing contamination.
Some anode materials, such as lithium titanate (LTO) or silicon-based materials, benefit from a carbon coating to improve their electrical conductivity and structural stability.
The carbon coating process often involves heating the anode material with a carbon source (e.g., pitch, sugar, or polymer) in a furnace.
Graphite saggers are used to contain the anode material and carbon source during the carbon coating process, ensuring a uniform coating and preventing the materials from sticking to the furnace walls.
For carbon-based anode materials like artificial graphite, a high-temperature sintering or graphitization process is required to convert the amorphous carbon into a more crystalline graphite structure, improving its electrochemical performance.
Graphite saggers are essential to contain the carbon powder and provide a suitable environment for this transformation.
Some anode materials are doped with other elements to enhance their performance. This doping process may involve high-temperature heat treatment in a controlled atmosphere.
Graphite saggers are used to contain the anode material and dopant during the doping process.
Purity: The graphite used in the sagger should be of high purity to prevent contamination of the anode material.
Density and Porosity: The density and porosity of the graphite sagger affect its thermal conductivity, gas permeability, and mechanical strength. Higher density and lower porosity are generally preferred for better protection and longer lifespan, but can impact thermal uniformity.
Sealing: The sagger may be sealed to create a specific atmosphere around the material. The sealing method and materials must be compatible with the high-temperature environment.
Shape and Size: The shape and size of the sagger should be optimized for the specific furnace and the amount of material being processed.
Cost: Graphite saggers can be relatively expensive, so their lifespan and reusability are important considerations.
Atmosphere Control: The ability of the sagger to maintain the desired atmosphere (e.g., inert, reducing) is critical for the success of the heat treatment process.
