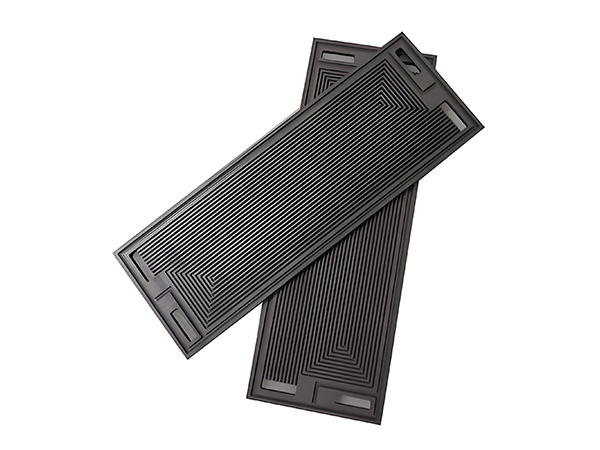

Graphite Bipolar Plates for Flow Batteries and Fuel Cells

Graphite Bipolar Plates for Flow Batteries and Fuel Cells Introduction

Graphite bipolar plates are a crucial component in both flow batteries and fuel cells. They serve several vital functions, contributing significantly to the performance, efficiency, and durability of these energy storage and conversion devices.

Functions of Graphite Bipolar Plates:

Electrical Conduction: They conduct electrons between the individual cells within the stack, connecting the anode of one cell to the cathode of the adjacent cell. This is essential for completing the electrical circuit and allowing the flow of current. Graphite, being a good electrical conductor, facilitates this process.

Gas/Electrolyte Distribution: They contain channels (flow fields) that distribute the fuel (e.g., hydrogen in fuel cells) or electrolyte (in flow batteries) evenly across the electrode surface. This ensures that reactants are efficiently delivered to the active sites, maximizing performance. The design of these flow fields is critical for optimal performance.

Separation of Reactants/Electrolytes: They act as physical barriers, separating the reactants (fuel and oxidant in fuel cells) or electrolytes from each other and preventing cross-mixing. This is crucial for maintaining the purity of the electrochemical reactions and preventing unwanted side reactions.

Structural Support: They provide mechanical support to the cell stack, maintaining the integrity and preventing deformation of the electrodes and membranes.

Heat Management: They can help to dissipate heat generated by the electrochemical reactions within the cells. This is important for maintaining the optimal operating temperature and preventing overheating, which can degrade performance or damage the components.

Why Graphite? (Advantages of Graphite as a Bipolar Plate Material):

High Electrical Conductivity: Graphite is an excellent electrical conductor, minimizing ohmic losses and maximizing the efficiency of the cell stack.

Good Thermal Conductivity: Graphite exhibits good thermal conductivity, facilitating heat dissipation.

Chemical Inertness/Corrosion Resistance: Graphite is relatively inert and resistant to corrosion in the harsh chemical environments found in fuel cells and flow batteries (acidic or alkaline electrolytes). This ensures long-term stability and durability.

Lightweight: Compared to metals, graphite is relatively lightweight, which is beneficial for applications where weight is a concern (e.g., transportation).

Relatively Low Cost (Compared to Alternatives): While not the cheapest material overall, graphite is generally more cost-effective than many other materials that offer similar performance characteristics, especially when considering factors like corrosion resistance.

Machinability: Graphite can be readily machined into complex shapes, allowing for the creation of intricate flow field designs.

Types of Graphite Bipolar Plates:

Porous Graphite Plates: These are typically made from compressed graphite particles. They are generally less expensive but have higher permeability and lower mechanical strength.

Dense/Solid Graphite Plates: These are made from higher-density graphite materials and offer improved mechanical strength and gas impermeability.

Composite Graphite Plates: These combine graphite with other materials (e.g., polymers, resins, or metals) to improve specific properties such as mechanical strength, gas impermeability, or corrosion resistance. Common examples include graphite-polymer composites and graphite-metal composites. These are often referred to as "bipolar plate composites."

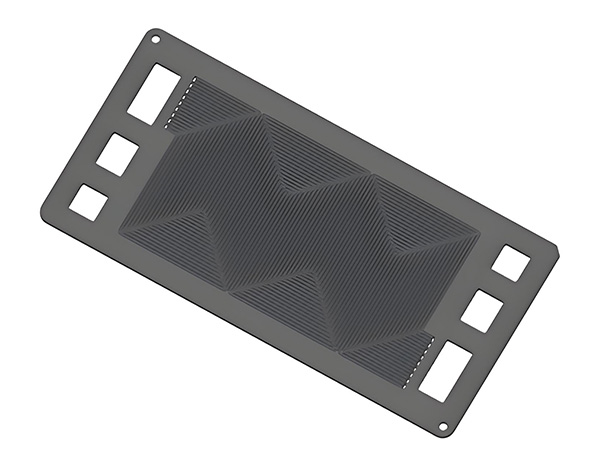

Flow Field Designs:

The design of the flow fields on the bipolar plates is crucial for optimizing performance. Common flow field designs include:

Serpentine Flow Fields: These feature a single, winding channel that forces the reactants/electrolytes to flow across the entire electrode surface. They offer good reactant utilization but can lead to higher pressure drops.

Parallel Flow Fields: These consist of multiple parallel channels that distribute the reactants/electrolytes across the electrode surface. They have lower pressure drops but can suffer from uneven reactant distribution.

Interdigitated Flow Fields: These feature alternating channels for the fuel and oxidant/electrolyte, forcing them to flow in a counter-current manner. This can improve mass transport and performance.

Mesh/Grid Flow Fields: These use a network of interconnected channels to distribute the reactants/electrolytes.

Manufacturing Processes:

Machining: Graphite plates are often machined to create the desired flow field patterns.

Molding: Composite bipolar plates can be molded to create complex shapes.

Compression Molding: Graphite powders can be compressed into the desired shape.

Screen Printing/Coating: Conductive coatings can be applied to graphite plates to improve conductivity or corrosion resistance.

Specific Applications:

Proton Exchange Membrane Fuel Cells (PEMFCs): Graphite bipolar plates are widely used in PEMFCs, where they conduct electrons, distribute hydrogen and air, and separate the gases.

Direct Methanol Fuel Cells (DMFCs): Similar to PEMFCs, graphite bipolar plates are used in DMFCs.

Redox Flow Batteries (RFBs): Graphite bipolar plates are used in RFBs to conduct electrons and distribute the electrolyte solutions across the electrodes. Vanadium redox flow batteries (VRFBs) are a common application.

Zinc-Bromine Flow Batteries (Zn-Br Batteries): Graphite bipolar plates are used in these batteries as well.
