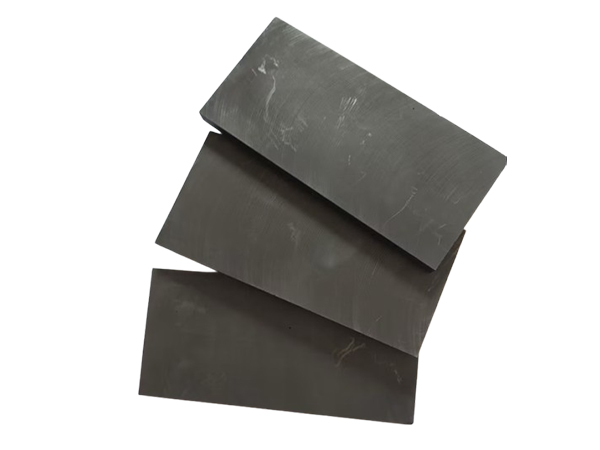

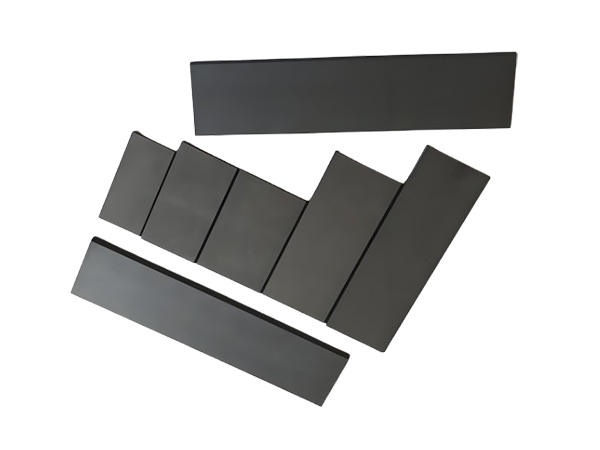

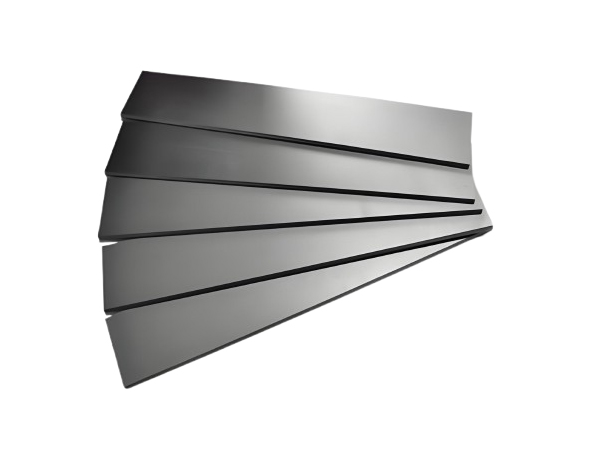

Home Products Machinery Industry / Graphite Vanes for Vacuum Pumps
Graphite vanes offer a proven and reliable solution for many vacuum pump applications. Their self-lubricating properties, relatively low cost, and ability to achieve high vacuum levels make them a popular choice. However, understanding their limitations and selecting the appropriate graphite material for the specific application is crucial for maximizing performance and longevity. Further investigation into specific graphite grades, pump designs, and operating conditions is recommended for selecting the optimal solution for a given vacuum application.
Graphite vanes are a critical component in many rotary vane vacuum pumps. They act as sliding seals within the pump chamber, creating and maintaining the vacuum by pushing air out as the rotor spins. This introduction will provide a general overview of graphite vanes in this application, covering their function, materials, advantages, limitations, and common applications.
Self-Lubrication: Reduces maintenance and eliminates the need for complex lubrication systems in some pump designs (oil-less pumps).
High Vacuum Levels: Graphite vanes can effectively seal and maintain high vacuum pressures.
Relatively Low Cost: Graphite composites are generally more cost-effective than other materials with similar properties.
Versatility: Can be used in a wide range of pump sizes and applications.
Compact Design: Allows for smaller and lighter pump designs compared to some other technologies.
Tolerance to Contamination (to some extent): Graphite can tolerate some degree of solid particle contamination, although excessive contamination will accelerate wear.
Wear: Graphite vanes do wear over time, requiring periodic replacement. The rate of wear depends on the pump design, operating conditions, and the quality of the graphite material.
Moisture Sensitivity (in some formulations): Some graphite formulations can absorb moisture, which can affect their performance and longevity.
Not Suitable for Pumping Reactive Gases (generally): Certain aggressive or reactive gases can degrade the graphite material. Specific formulations are available that offer improved chemical resistance.
Limited Temperature Range: High temperatures can accelerate wear and degradation.
Can Generate Dust: The wear process produces graphite dust, which may be a concern in some applications.
Packaging: Vacuum packaging for food, pharmaceuticals, and other products.
Printing: Vacuum hold-down systems for printing presses.
Medical Equipment: Vacuum pumps for medical devices, such as suction pumps.
Woodworking: Vacuum clamping systems for woodworking machinery.
Central Vacuum Systems: For residential and commercial buildings.
Material Handling: Vacuum lifting and conveying systems.
Laboratory Equipment: Vacuum pumps for laboratory applications.
Environmental Monitoring: Vacuum pumps for air sampling.
Automotive: Vacuum pumps for various automotive systems (brake boosters, etc.).
