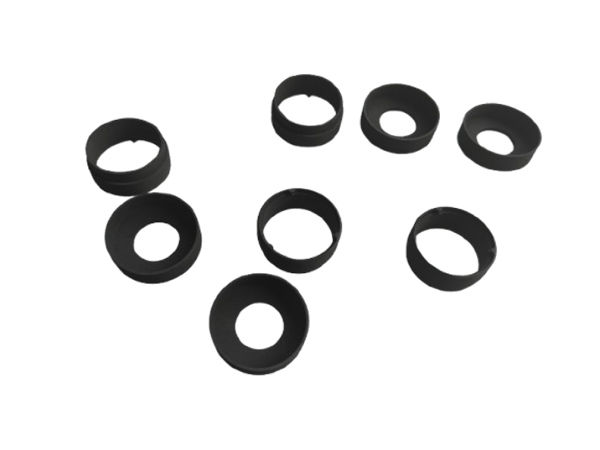

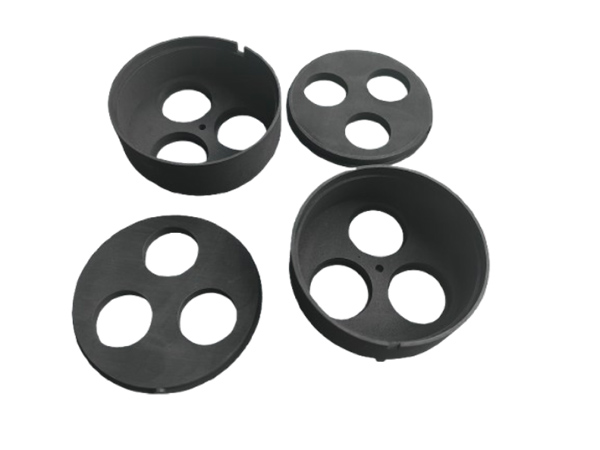

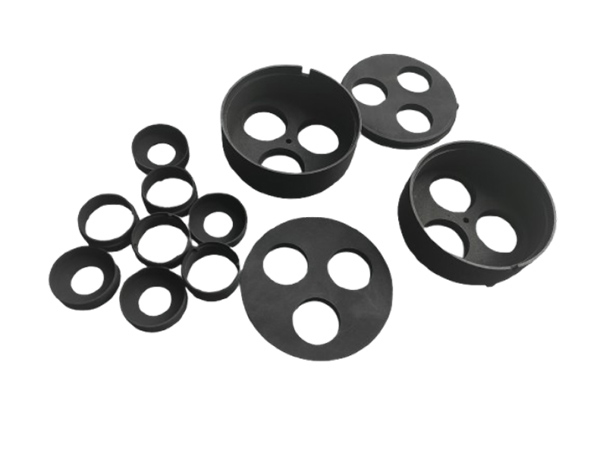

Graphite Mold for Thermal Analysis Instruments

Overview of Graphite Molds for Thermal Analysis Instruments

Graphite molds are crucial components in thermal analysis instruments, particularly in applications like differential scanning calorimetry (DSC), thermogravimetric analysis (TGA), and differential thermal analysis (DTA). They serve as sample holders and play a vital role in ensuring accurate and reliable thermal measurements.

Why Graphite?

Graphite is preferred for these applications due to its unique combination of properties:

High Thermal Conductivity: Graphite efficiently transfers heat, leading to more uniform temperature distribution within the sample and faster thermal response. This is critical for accurate temperature measurements and minimized thermal lag.

High Purity: Impurities in the sample holder can interfere with the thermal behavior of the sample and introduce errors in the analysis. High-purity graphite minimizes this risk.

Chemical Inertness: Graphite is generally unreactive with most substances, preventing unwanted reactions with the sample during heating or cooling. It resists attack by acids, bases, and many solvents.

High Temperature Stability: Graphite can withstand high temperatures without significant deformation or degradation, allowing for analysis over a wide temperature range.

Low Thermal Expansion: Graphite has a relatively low coefficient of thermal expansion, minimizing dimensional changes that could affect the sample and the instrument's calibration.

Ease of Machining: Graphite is relatively easy to machine into complex shapes, allowing for the creation of custom molds tailored to specific sample sizes and geometries.

Cost-Effectiveness: Graphite is relatively cost-effective compared to other materials with similar high-temperature and thermal properties.

Types of Graphite Used:

Several types of graphite are used for molds, depending on the application and the specific requirements:

Isostatic Graphite: This type of graphite is produced using isostatic pressing, resulting in a highly uniform density and grain size. It offers excellent thermal conductivity and mechanical strength. Isostatic graphite is often preferred for demanding applications requiring high precision and reliability.

Extruded Graphite: Extruded graphite is produced by forcing a graphite paste through a die. While it may have slightly lower density and thermal conductivity compared to isostatic graphite, it is often more cost-effective and suitable for less critical applications.

Molded Graphite: This type of graphite is produced by pressing graphite powder into a mold. It may have lower density and mechanical strength compared to isostatic and extruded graphite.

Design Considerations for Graphite Molds:

The design of graphite molds significantly impacts the accuracy and reliability of thermal analysis measurements. Key design considerations include:

Sample Volume: The mold should accommodate the appropriate sample volume as specified by the instrument and the analysis requirements.

Sample Geometry: The shape of the mold influences the heat transfer to the sample. Simple shapes like cylindrical cups or pans are commonly used.

Wall Thickness: The thickness of the mold walls affects the heat transfer rate. Thinner walls generally promote faster heat transfer but may compromise mechanical strength.

Lid or Cover: Some molds include a lid or cover to prevent sample evaporation or contamination during analysis.

Venting: Molds for TGA analysis may include small vents to allow evolved gases to escape without affecting the mass measurement.

Surface Finish: A smooth surface finish promotes good thermal contact between the mold and the sample.

Dimensional Accuracy: Precise dimensions are crucial for ensuring proper fit within the instrument and consistent thermal behavior.

Applications:

Graphite molds are used in various thermal analysis applications, including:

Differential Scanning Calorimetry (DSC): DSC measures the heat flow associated with phase transitions, chemical reactions, and other thermal events. Graphite molds provide a stable and thermally conductive platform for holding the sample.

Thermogravimetric Analysis (TGA): TGA measures the mass change of a sample as a function of temperature or time. Graphite molds must be lightweight and allow for the free escape of evolved gases.

Differential Thermal Analysis (DTA): DTA measures the temperature difference between a sample and a reference material. Graphite molds ensure good thermal contact between the sample and the reference.

Flash Diffusivity: Often used as sample holders or masks in flash diffusivity measurements to determine thermal diffusivity of materials.

High-Temperature Furnaces: Crucibles or holders in furnaces for heat treating or melting processes.

Cleaning and Maintenance:

Proper cleaning and maintenance are essential to ensure the longevity and accuracy of graphite molds:

Cleaning: After each analysis, remove any residual sample material from the mold. Gentle cleaning with a soft brush or cloth is usually sufficient. Avoid harsh abrasives or solvents that could damage the graphite.

Storage: Store the molds in a clean and dry environment to prevent contamination or degradation.

Replacement: Graphite molds may degrade over time due to repeated heating and cooling cycles or exposure to corrosive substances. Replace them periodically to maintain accurate measurements.

Advantages of Using Graphite Molds in Thermal Analysis:

Improved Accuracy: Enhanced thermal conductivity and uniform temperature distribution lead to more accurate thermal measurements.

Faster Analysis: Faster heat transfer allows for shorter analysis times.

Wider Temperature Range: Graphite's high temperature stability enables analysis over a wider range of temperatures.

Reduced Contamination: Graphite's chemical inertness minimizes the risk of sample contamination.
