Graphite is widely used in the laboratory industry due to its exceptional properties, including high thermal and electrical conductivity, chemical resistance, and mechanical strength. It is a crucial material for various laboratory applications where extreme temperatures, corrosive environments, and high precision are required.

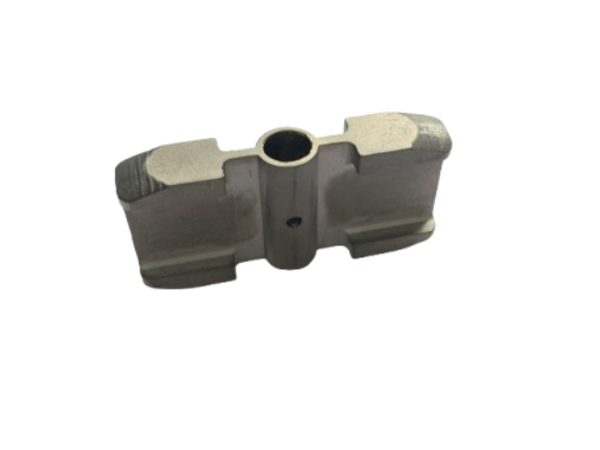

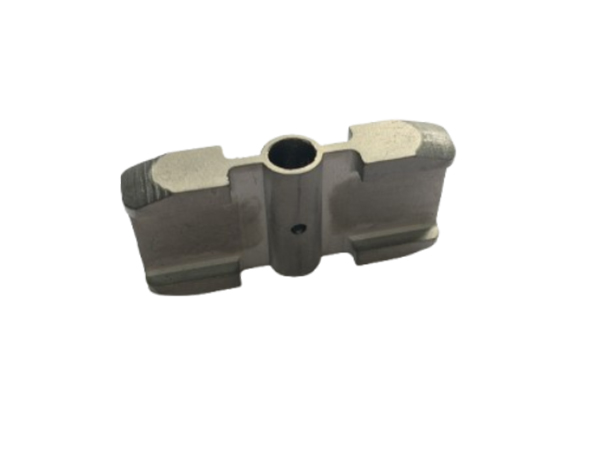

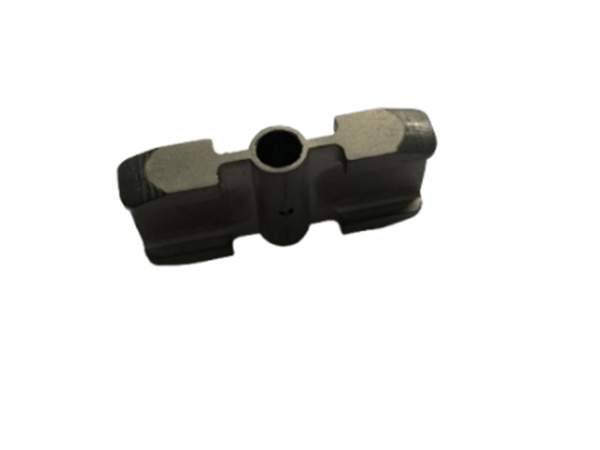

Home Products Laboratory Industry / Graphite Mold for Purity Analyzer
Graphite molds are essential tools in various purity analysis techniques due to their high-temperature stability, chemical inertness, and other desirable properties. Selecting the right grade of graphite and designing the mold appropriately are critical for obtaining accurate and reliable results. Remember to consider the specific requirements of your analytical technique and the properties of the sample being analyzed.
Graphite is a popular material for molds and crucibles in high-temperature applications, particularly when analyzing purity, because of its unique combination of properties:
High Melting Point and Thermal Stability: Graphite has a very high sublimation temperature (around 3650 °C or 6600 °F). This means it can withstand the extreme temperatures often used in purity analysis without melting, softening, or significantly reacting.
Chemical Inertness: Graphite is relatively inert, meaning it doesn't readily react with many materials at high temperatures. This is crucial because you don't want the mold to contaminate the sample being analyzed. While not completely inert (it will react with strong oxidizers), it's suitable for many applications.
Thermal Conductivity: Graphite has good thermal conductivity. This allows for efficient and even heating of the sample within the mold, leading to more accurate and reliable analysis results. Uniform heating is critical for processes like melting point determination or complete combustion.
Ease of Machining: Graphite can be machined into complex shapes with relatively high precision. This allows for the creation of molds tailored to specific sample sizes, shapes, and analytical requirements.
Low Thermal Expansion: Graphite has a relatively low coefficient of thermal expansion. This means it doesn't change size significantly with temperature changes, minimizing the risk of cracking or distorting the mold during heating and cooling cycles.
Self-Lubricating: Graphite is a good lubricant. This can be helpful when removing the sample from the mold after the analysis.
Electrical Conductivity: Graphite is electrically conductive. This can be useful in certain types of purity analysis techniques, such as electrothermal vaporization or when using induction heating.
Here are some specific examples where graphite molds might be used in purity analysis:
Melting Point Determination: A small sample is placed in a graphite crucible and heated. The melting point is observed, which is an indicator of purity. Impurities generally lower and broaden the melting range.
Glow Discharge Mass Spectrometry (GDMS): GDMS is used for bulk elemental analysis of solids. The sample can be placed in a graphite crucible. The graphite acts as a cathode, and the sample is sputtered by a plasma, and the sputtered atoms are then analyzed by a mass spectrometer.
Inert Gas Fusion (IGF) for Oxygen/Nitrogen/Hydrogen Determination: In this technique, a sample is heated in a graphite crucible in an inert gas atmosphere (e.g., helium or argon). The sample reacts with the graphite and any oxygen, nitrogen, or hydrogen present is released as CO, N2, and H2, respectively. These gases are then quantified using gas chromatography or infrared detection. The graphite is critical for both containing the sample and facilitating the reaction by providing a reducing environment at high temperatures.
Combustion Analysis (e.g., for Carbon and Sulfur): The sample is burned in a graphite crucible in an oxygen-rich atmosphere. The carbon and sulfur are converted to CO2 and SO2, respectively, which are then measured to determine the carbon and sulfur content of the sample.
Atomic Absorption Spectroscopy (AAS) and Inductively Coupled Plasma (ICP) Spectroscopy: In some AAS and ICP techniques, a graphite furnace or crucible might be used to vaporize or atomize the sample before it is introduced into the spectrometer. This is especially common for trace element analysis.
Differential Scanning Calorimetry (DSC) and Differential Thermal Analysis (DTA): Graphite pans (very small crucibles) can be used in DSC/DTA to contain the sample during heating and cooling cycles. These techniques measure heat flow, which can reveal phase transitions and other thermal events that are related to purity. However, aluminum or platinum pans are more common in DSC/DTA. Graphite would be used if the sample is reactive with aluminum or platinum.
Thermogravimetric Analysis (TGA): Similar to DSC, TGA measures the weight change of a sample as a function of temperature. Graphite crucibles can be used to hold the sample during the analysis.
Loss on Ignition (LOI): A sample is heated in a graphite crucible to a high temperature. The weight loss is measured and attributed to the loss of volatile components. This is an indirect measure of purity or the presence of certain impurities.
X-ray Fluorescence (XRF): While XRF doesn't directly use a graphite mold for heating, graphite is often used as a backing material or substrate for powder samples to provide a uniform surface for analysis. This helps improve the accuracy and precision of the measurements.
Graphite Grade/Purity: The purity of the graphite itself is critical. You need to use high-purity graphite to avoid contaminating your sample. Look for grades specifically designed for analytical applications.
Outgassing: Graphite can absorb gases. Before use, it's often necessary to pre-heat the graphite mold in a vacuum or inert atmosphere to remove any adsorbed gases that could interfere with the analysis.
Oxidation: Graphite will oxidize in air at elevated temperatures. Therefore, many applications require the use of an inert gas atmosphere (e.g., argon, helium) to protect the graphite mold. Coatings can also be applied to the graphite to prevent oxidation.
Reaction with the Sample: While graphite is generally inert, it can react with certain substances, especially at high temperatures. Consider the potential for reactions with the sample being analyzed. For example, graphite can react with certain metals to form carbides.
Cleaning: Thoroughly clean the graphite mold before each use to remove any contaminants. Avoid using harsh chemicals that could damage the graphite. Heating in a vacuum or inert atmosphere is often the best cleaning method.
Porosity: The porosity of the graphite can affect its performance. Denser graphite grades are generally preferred for applications where contamination is a concern. However, porosity can sometimes be beneficial for certain applications, such as allowing gases to escape.
Machining Tolerances: Precision is important. High-precision machining is needed to ensure the mold's geometry meets the requirements of the analytical technique.
When ordering or designing a graphite mold, consider these factors:
Material: Specify the grade of graphite (e.g., high-purity graphite, isostatic graphite). Provide the manufacturer's designation or specific purity requirements.
Dimensions: Provide detailed drawings with all critical dimensions, including the inner diameter, outer diameter, height, wall thickness, and any special features.
Surface Finish: Specify the desired surface finish (e.g., polished, machined). A smoother surface finish can help prevent contamination.
Tolerance: Specify the tolerances for all dimensions.
Application: Describe the intended application (e.g., melting point determination, combustion analysis). This will help the supplier recommend the appropriate grade of graphite and design.
Quantity: Specify the quantity needed.
Coating (if applicable): If a coating is required (e.g., to prevent oxidation), specify the type of coating and its thickness.
Operating Temperature: Specify the maximum operating temperature the mold will be exposed to.
