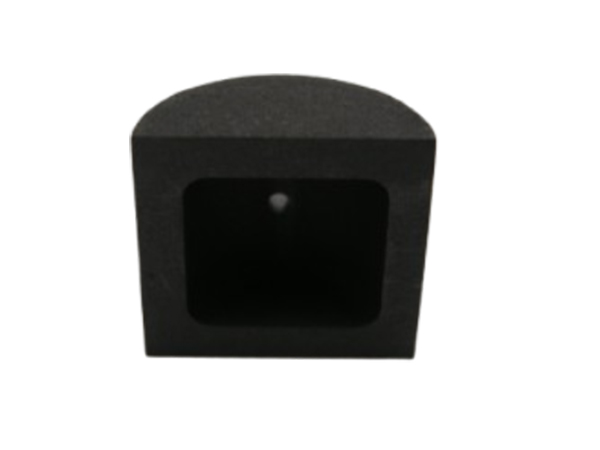

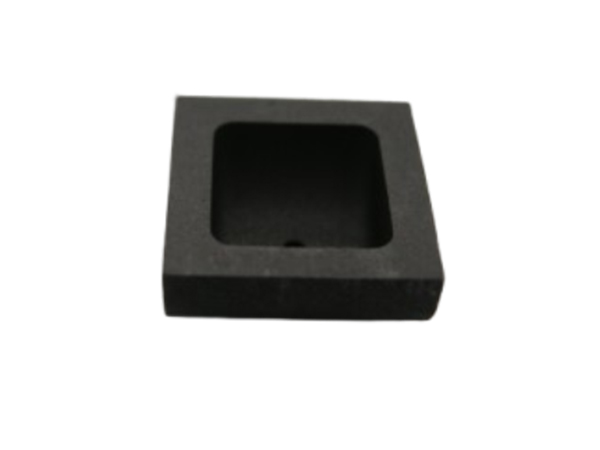

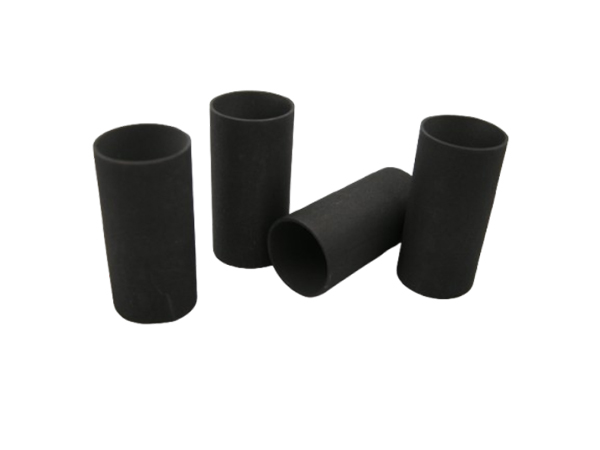

Graphite Die-casting Mold for Lab

Why Graphite Might Be Considered for Die-Casting Molds in a Lab

High-Temperature Resistance: Graphite can withstand very high temperatures (well above the melting point of most common die-casting alloys like aluminum, zinc, and magnesium). This is its primary advantage. This makes it suitable for experimental die-casting with higher melting point materials or processes where you anticipate high heat.

Good Thermal Conductivity: Graphite conducts heat well, which can help with uniform cooling of the casting, potentially reducing porosity and improving mechanical properties. This is less of a concern in many lab settings where production speed isn't the primary goal.

Lubricity: Graphite is naturally lubricious. This can aid in easy ejection of the casting from the mold. It can also reduce the need for external mold release agents, which can be a contamination concern in research.

Machinability: Graphite is relatively easy to machine, especially compared to hardened tool steels. This makes it appealing for creating complex mold geometries in a lab setting where you might be iterating on designs.

Chemical Inertness: Graphite is generally inert to many molten metals, reducing the risk of reaction and contamination.

Why Graphite Might Not Be Ideal for Die-Casting Molds (Especially in Production):

Low Strength and Brittleness: Graphite is much weaker than steel. It's prone to cracking and chipping under pressure, particularly during the high clamping forces of die-casting. This is a significant limitation.

Porosity: Graphite can be porous, which can lead to gas entrapment in the casting or infiltration of molten metal into the mold material. Specialized grades of graphite can mitigate this.

Oxidation: At high temperatures in air, graphite oxidizes to CO and CO2. This can lead to erosion of the mold and potential contamination of the casting. A protective atmosphere (e.g., inert gas) is often required.

Wear Resistance: Graphite wears more quickly than hardened steel, especially under abrasive conditions. This translates to a shorter mold lifespan, particularly with higher-volume production.

Cost: While the raw material cost of some graphite grades might be lower than tool steel, the cost of specialized, high-purity, and high-density graphites suitable for demanding applications can be significant.

Surface Finish: Achieving a very smooth surface finish on graphite can be challenging compared to polished steel molds. This can affect the surface finish of the die-cast part.

Dimensional Stability: Graphite's thermal expansion coefficient is different from most die-casting alloys. This can lead to stresses during cooling and potential inaccuracies in the casting.

Considerations for Using Graphite Die-Casting Molds in a Lab:

Alloy Selection: Focus on alloys with lower melting points and lower clamping pressures. Aluminum and zinc alloys are more suitable than copper alloys. Alloys that are particularly aggressive to graphite should be avoided.

Mold Design:

Simplicity: Design simple mold geometries to minimize stress concentrations. Avoid sharp corners.

Reinforcement: Consider reinforcing the graphite mold with a steel frame or support structure to provide additional strength and prevent cracking.

Draft Angles: Use generous draft angles to aid in ejection and reduce stress on the mold.

Venting: Ensure adequate venting to remove gases and prevent porosity in the casting. Graphite's porosity, while a negative in some ways, can actually help with venting if properly managed.

Mold Thickness: Use thicker mold sections to increase strength and rigidity.

Die-Casting Machine:

Low Clamping Force: Use a die-casting machine with adjustable clamping force and set it as low as possible while still preventing flashing.

Accurate Temperature Control: Precise temperature control is critical to minimize thermal stresses and oxidation.

Ejection System: A well-designed ejection system is essential to remove the casting without damaging the graphite mold.

Environment:

Protective Atmosphere: Use an inert gas atmosphere (e.g., argon or nitrogen) to minimize oxidation of the graphite mold at high temperatures. This is especially important for extended runs.

Vacuum Die Casting: If possible, consider vacuum die casting to reduce porosity and improve casting quality.

Graphite Grade:

High Density: Choose a high-density, fine-grained graphite grade with low porosity. Isostatically pressed graphite is often preferred. Ask graphite suppliers for recommendations based on your specific alloy and casting parameters.

Impregnation: Consider using a graphite grade that has been impregnated with a resin or metal to reduce porosity and improve strength. This will increase cost.

Surface Treatment:

Coating: Applying a thin coating of a protective material (e.g., silicon carbide, boron nitride) can help to reduce oxidation, improve wear resistance, and prevent metal penetration. Ensure the coating doesn't react with the molten metal.

Polishing: While challenging, polishing the mold surface as much as possible will improve the surface finish of the casting.

Mold Release: Use a mold release agent sparingly. Choose one that is compatible with both the graphite mold and the casting alloy.

Safety: Graphite dust is conductive and can be a fire hazard. Use appropriate dust control measures. Wear appropriate personal protective equipment (PPE), including a respirator, gloves, and eye protection.
