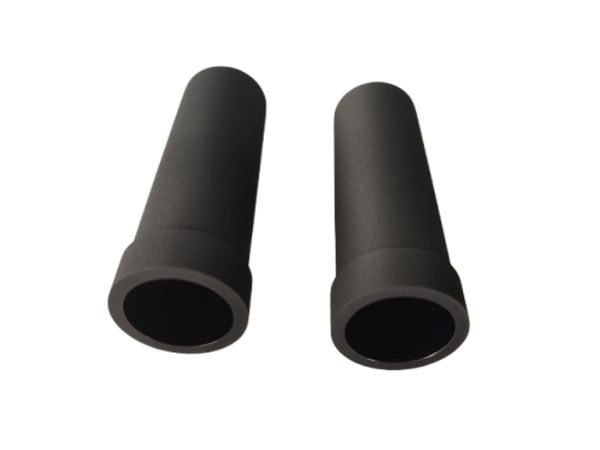

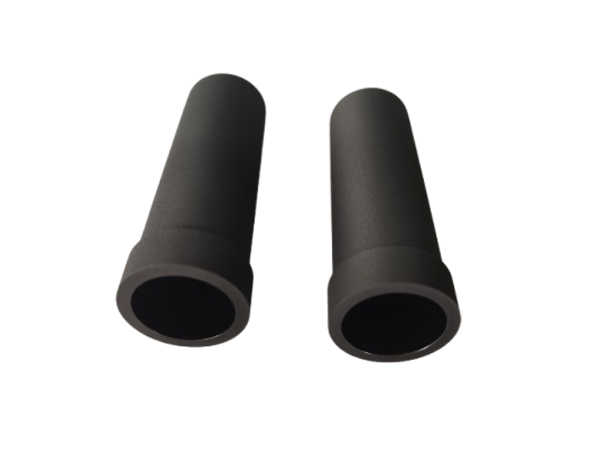

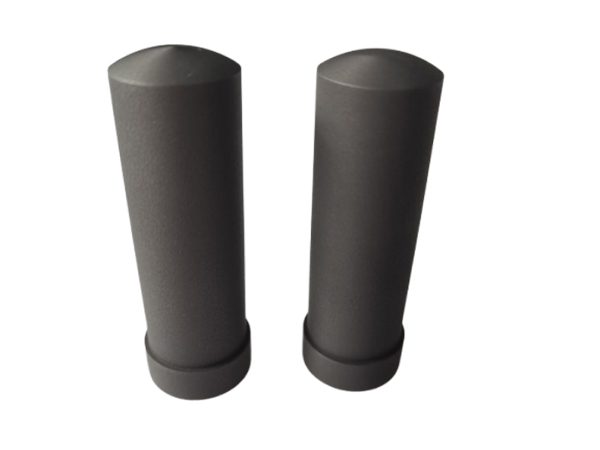

Dental Graphite Crucible

Dental Graphite Crucible Introduction

Dental graphite crucibles are specialized containers made of graphite used in dental laboratories for melting and casting metals, primarily precious metals like gold, silver, and platinum-based alloys used in dental restorations and prosthetics.

Dental Graphite Crucible Features

High Heat Resistance: Graphite is exceptionally resistant to high temperatures, allowing it to withstand the melting points of various dental alloys (often exceeding 1000°C).

Chemical Inertness: Graphite is relatively inert and doesn't readily react with the molten metals used in dentistry, preventing contamination of the alloy. This is crucial for maintaining the desired properties and aesthetic qualities of the final restoration.

Thermal Conductivity: Graphite's good thermal conductivity ensures even heating of the alloy, promoting uniform melting and preventing hot spots that could lead to oxidation or degradation.

Machinability: Graphite is easily machinable, allowing for the creation of crucibles in various shapes and sizes to accommodate different casting equipment and alloy quantities.

Self-Lubricating: The self-lubricating nature of graphite aids in the easy removal of the solidified metal casting after the melting process.

Porosity: Graphite crucibles can have varying levels of porosity. Lower porosity is generally preferred to minimize the risk of metal absorption into the crucible material. However, some controlled porosity can aid in gas release during melting.

Uses in Dental Laboratories

Melting Precious Metals: Primarily used for melting gold, silver, platinum, palladium, and their alloys for dental crowns, bridges, inlays, onlays, and other restorations.

Casting Procedures: The molten metal is often poured directly from the crucible into a casting ring (investment mold) in casting machines (e.g., centrifugal casting machines, vacuum casting machines).

Alloy Preparation: Some laboratories use crucibles to mix and melt different metals together to create specific dental alloys with tailored properties.

Laboratory Research and Development: Used in the development and testing of new dental alloys.

Considerations:

Crucible Size and Shape: Crucibles come in various sizes to accommodate different volumes of metal. The shape is often tailored to the specific casting machine used in the lab.

Material Quality: The quality of the graphite is crucial. Higher purity graphite with fewer impurities is preferred.

Crucible Care:

Preheating: Preheating the crucible before use is essential to remove moisture and prevent thermal shock, which can cause cracking.

Handling: Handle crucibles carefully to avoid cracks or chips. Use appropriate tongs or crucible holders.

Storage: Store crucibles in a dry place to prevent moisture absorption.

Lifespan: Graphite crucibles have a limited lifespan and will eventually degrade with repeated use due to oxidation and thermal stress. Regular inspection is crucial, and worn or damaged crucibles should be replaced. The lifespan depends on the type of alloy being melted, the temperature, and the frequency of use.

Compatibility with Casting Equipment: Ensure that the crucible is compatible with the specific casting machine being used.

Crucible Liners: Some labs use ceramic or alumina liners inside the graphite crucible, particularly when melting alloys containing elements that could potentially react with graphite at high temperatures. These liners create a barrier between the metal and the graphite, extending the crucible's life and preventing contamination.

De-gassing: Some alloys can trap gases during the melting process. Using appropriate de-gassing techniques, such as fluxing, while the metal is molten in the crucible helps to improve the quality of the casting.
