Graphite Crucible Used in Chemical Analysis

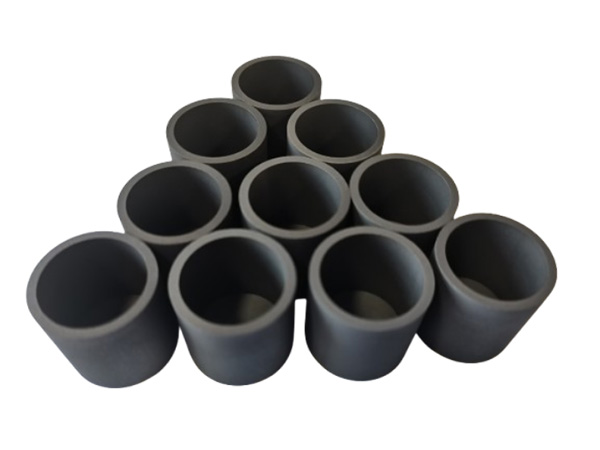

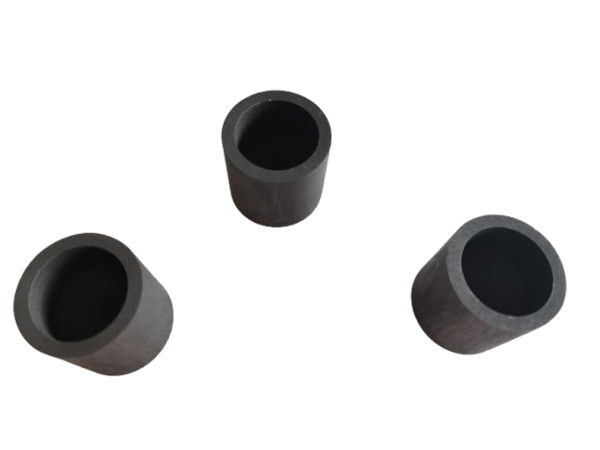

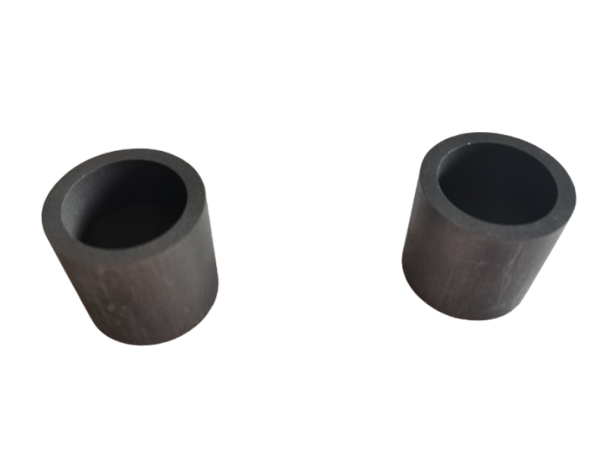

Graphite Crucible Used in Chemical Analysis Introduction

Graphite crucibles are frequently used in chemical analysis due to their unique properties. Here's a breakdown of why they're used and what considerations are important:

Why Graphite Crucibles are Used in Chemical Analysis:

High Temperature Resistance: Graphite can withstand extremely high temperatures (up to 3000°C in inert atmosphere) without melting or significant deformation. This makes them ideal for high-temperature reactions and fusions. Many chemical analyses require heating samples to very high temperatures to achieve desired reactions or conversions.

Chemical Inertness (Relatively): While not completely inert, graphite is resistant to many acids, bases, and solvents, especially at lower temperatures. This minimizes contamination of the sample being analyzed. They're particularly good for strongly alkaline fusions.

Thermal Conductivity: Graphite has good thermal conductivity, allowing for uniform heating of the sample. This ensures consistent and reproducible results.

Low Contamination Potential: High-purity graphite crucibles are available, minimizing the introduction of unwanted elements into the sample being analyzed. However, it's critical to use appropriately pure crucibles and consider potential contamination.

Ease of Machining: Graphite is relatively easy to machine into different shapes and sizes, allowing for customization based on the specific analytical application.

Reducing Atmosphere Potential: At high temperatures, graphite can act as a reducing agent. This can be useful in specific applications where reduction is required.

Resistance to Thermal Shock: Graphite crucibles can withstand rapid temperature changes without cracking or breaking, which is important for heating and cooling cycles during analysis.

Cost-Effectiveness: Compared to some other high-temperature crucible materials (e.g., platinum), graphite crucibles are generally more affordable.

Common Applications in Chemical Analysis:

Fusion Analysis: Used to dissolve refractory materials (e.g., oxides, silicates) with fluxes (e.g., sodium carbonate, lithium borate) at high temperatures to bring them into a solution suitable for subsequent analysis (e.g., ICP-OES, ICP-MS). This is especially crucial for geological samples, ceramics, and other difficult-to-dissolve materials.

Ignition of Samples: Used to ignite samples to remove organic matter or to convert compounds to a more stable form for analysis. For instance, determining the ash content of food samples.

High-Temperature Reactions: Used as reaction vessels for various high-temperature chemical reactions.

Preparation of Solutions for Analysis: The fusion process using a graphite crucible yields a solution that can then be analyzed by various analytical techniques.

Loss on Ignition (LOI) Determinations: Crucible's known weight and high-temperature tolerance allow for the heating of samples until a stable weight is achieved, quantifying the volatile components.

Considerations When Using Graphite Crucibles:

Purity: Select crucibles made from high-purity graphite to minimize contamination. Always check the manufacturer's specifications.

Oxidation: Graphite will oxidize in the presence of oxygen at high temperatures. Use an inert atmosphere (e.g., nitrogen, argon) to prevent oxidation if necessary. If oxidation is a concern, consider using a covered crucible or performing the analysis under an inert gas blanket.

Reactivity: While relatively inert, graphite can react with certain substances at high temperatures (e.g., strong oxidizers). Consider the potential for reactions between the graphite crucible and the sample or flux.

Porosity: Some graphite crucibles can be porous, potentially allowing penetration of the sample or flux. This can lead to inaccurate results.

Contamination from Previous Use: Always use clean crucibles. If reusing, clean them thoroughly before use. It's often recommended to use a new crucible for critical analyses.

Flux Selection: Choose a flux that is appropriate for the sample being analyzed and that will not react with the graphite crucible.

Temperature Control: Accurate temperature control is crucial for successful fusions and other high-temperature reactions.

Safety Precautions: Handle hot crucibles with appropriate tongs and wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
