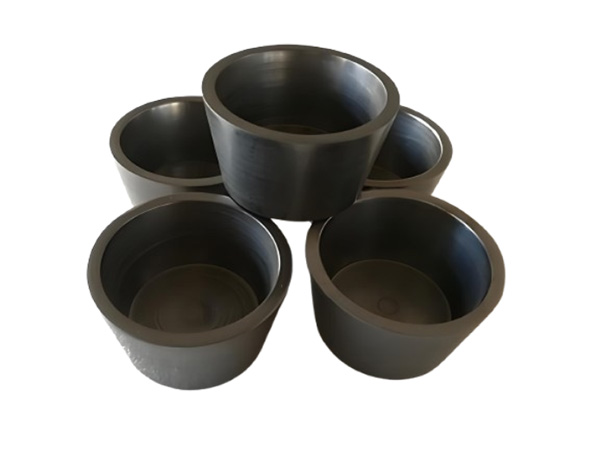

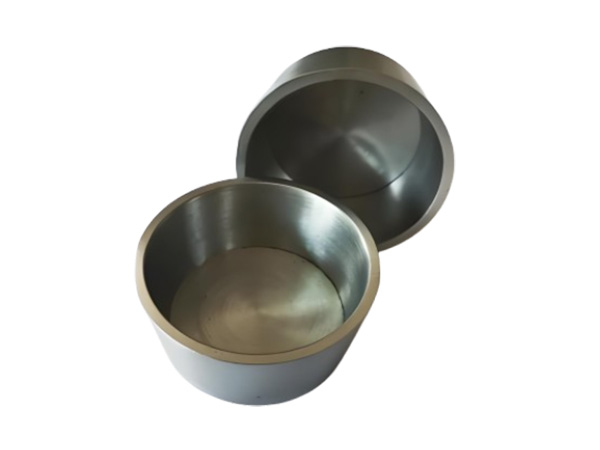

Graphite Crucible for Aluminum Vacuum Evaporation Coating

Graphite Crucible for Aluminum Vacuum Evaporation Coating Introduction

Graphite crucibles are commonly used for aluminum vacuum evaporation coating due to their high melting point, good thermal conductivity, and chemical inertness with molten aluminum.

Why Graphite?

High Melting Point: Graphite has a very high melting point (around 3650°C or 6600°F), far exceeding the melting point of aluminum (660°C or 1220°F). This allows it to contain molten aluminum without melting or deforming.

Thermal Conductivity: Graphite's good thermal conductivity helps ensure uniform heating of the aluminum, leading to more consistent evaporation rates.

Chemical Inertness: Graphite is generally inert to molten aluminum, meaning it won't react with the aluminum and contaminate the coating. While there can be some carbon uptake, it's typically minimal and manageable with proper grades of graphite.

Machinability: Graphite is relatively easy to machine into complex shapes, allowing for customized crucible designs optimized for specific evaporation systems.

Cost-Effective: Compared to some alternative crucible materials, graphite is generally a more cost-effective option.

Reduces Outgassing: Good quality graphite, properly baked out before use, minimizes outgassing during the evaporation process, leading to a cleaner vacuum and higher quality films.

Factors to Consider When Choosing a Graphite Crucible:

Grade of Graphite:

Purity: Crucially important. Use high-purity graphite to minimize contamination of the aluminum film. Look for grades with very low ash content (ideally less than 10 ppm) and minimal metallic impurities.

Grain Size: Finer grain sizes provide a smoother surface, reducing the potential for molten aluminum to seep into the graphite and cause spattering.

Density: Higher density graphite is generally stronger and less porous, which helps prevent molten aluminum from infiltrating the crucible material.

Strength: The crucible must be strong enough to withstand the thermal stresses during heating and cooling cycles. Consider the wall thickness and support structure.

Crucible Design

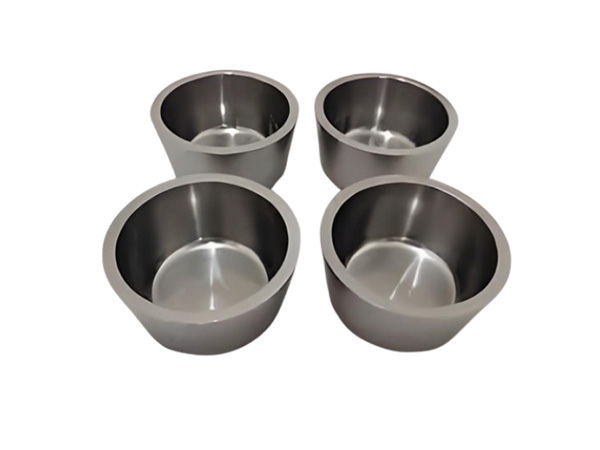

Shape: Common shapes include conical, cylindrical, and boat-shaped. The optimal shape depends on the specific evaporation system, the amount of aluminum to be evaporated, and the desired evaporation characteristics.

Size: Select a size appropriate for the volume of aluminum you'll be evaporating and the dimensions of your vacuum chamber. Ensure adequate spacing around the crucible for heating and gas flow.

Wall Thickness: A thicker wall provides more mechanical strength and thermal inertia but can also increase heating time. Optimize for the specific application.

Lid/Cover (Optional): A lid can help reduce spattering and prevent aluminum from splashing out of the crucible. It can also help improve the uniformity of the aluminum evaporation rate.

Heating Method

Resistive Heating: Graphite crucibles can be directly heated by passing an electric current through them. This is efficient but requires careful control of the current and voltage.

Inductive Heating: Radio-frequency (RF) induction heating can be used to heat the crucible. This method is contactless and provides good temperature control.

Electron Beam Heating: An electron beam can be focused on the aluminum within the crucible to vaporize it. Graphite mainly contains the Al and not directly heated.

Crucible Support

The crucible must be properly supported within the vacuum chamber. Consider using a ceramic or graphite support structure to prevent the crucible from tilting or falling over. The support should be thermally insulating to minimize heat loss from the crucible.

Outgassing

Before using a new graphite crucible, it's essential to bake it out in a vacuum furnace to remove adsorbed gases and volatile contaminants. This process can involve heating the crucible to a high temperature (e.g., 1000°C or higher) for several hours under high vacuum.

Crucible Lifetime

Graphite crucibles have a finite lifespan. They can degrade over time due to thermal cycling, reaction with the evaporated material, and mechanical stress. Monitor the crucible for signs of wear and tear, such as cracking or deformation, and replace it when necessary.

Typical Procedure

Crucible Selection: Choose a high-purity graphite crucible of the appropriate grade, size, and shape.

Bake-Out: Bake out the crucible in a vacuum furnace to remove contaminants.

Loading: Carefully load the aluminum material into the crucible.

Vacuum Chamber Setup: Place the crucible in the vacuum chamber, ensuring proper support and electrical connections (if using resistive heating).

Evacuation: Evacuate the vacuum chamber to the desired pressure.

Heating: Heat the crucible to a temperature above the melting point of aluminum.

Evaporation: Allow the aluminum to evaporate and deposit onto the substrate.

Cooling: After evaporation, allow the crucible and the substrate to cool down.

Unloading: Vent the vacuum chamber and remove the coated substrate.

Inspection: Inspect the crucible for damage and replace it if necessary.

Common Issues and Solutions

Spattering: Molten aluminum can sometimes spatter out of the crucible, leading to defects in the coating. To minimize spattering:

Use a high-purity graphite crucible with a fine grain size.

Ensure the aluminum is dry and free of contaminants.

Use a crucible with a lid or cover.

Ramp up the heating rate slowly.

Control the vacuum pressure carefully.

Contamination: Impurities in the graphite crucible can contaminate the aluminum film.

Use a high-purity graphite crucible.

Bake out the crucible thoroughly before use.

Clean the crucible regularly.

Crucible Cracking: Thermal stress can cause the crucible to crack.

Use a graphite crucible with good thermal shock resistance.

Ramp up the heating and cooling rates slowly.

Ensure the crucible is properly supported.

Aluminum Alloying: Depending on the specific grade of graphite, at very high temperatures and prolonged exposure, some carbon can dissolve into the aluminum. This is usually minimal with proper grade selection and optimized processes.
