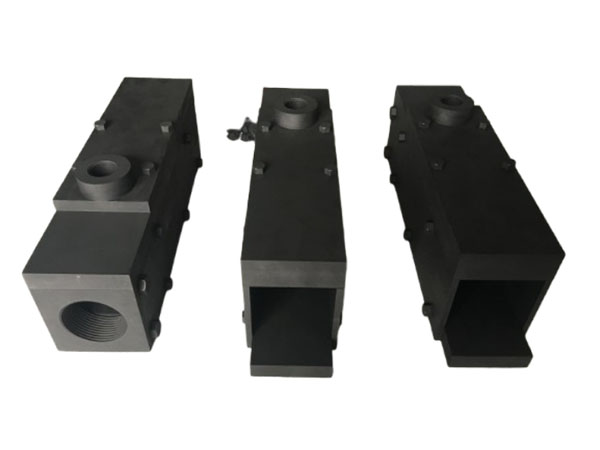

Graphite products for the heat treatment industry mainly include: graphite heating rods, graphite furnace bed guides, graphite nozzles, graphite conductive rods, graphite connectors, graphite columns, graphite furnace bed holders, graphite screws, graphite nuts and graphite beams.
Home Products Heat Treatment Industry / Vacuum Furnace Graphite Parts
Graphite is a crucial material in vacuum furnaces, providing the necessary high-temperature stability, thermal properties, and chemical inertness for efficient and contamination-free heat treatment. Careful consideration of the application requirements and the properties of different graphite grades is essential for selecting the right materials for specific furnace components. When selecting parts, consult with experienced suppliers to ensure optimal performance and longevity.
Vacuum furnaces are essential for heat treating and processing materials in a controlled, oxygen-free environment. Graphite is a popular material choice for many components within these furnaces due to its unique properties at high temperatures.
High Temperature Stability: Graphite retains its strength and properties at extremely high temperatures (well above 2000°C), making it ideal for the hot zone of a vacuum furnace.
Low Vapor Pressure: Graphite sublimates rather than melts, and has low vapor pressure even at high temperatures, minimizing contamination of the vacuum environment and the parts being processed.
Thermal Conductivity: Graphite has good thermal conductivity, enabling efficient heat transfer within the furnace.
Self-Lubrication: In a vacuum environment, graphite's self-lubricating properties are advantageous, reducing friction in moving parts.
Chemical Inertness: Graphite is chemically inert and resistant to most corrosive substances, further minimizing contamination.
Lightweight: Compared to refractory metals, graphite is relatively lightweight.
Machinability: Graphite is readily machinable to precise tolerances, allowing for complex part designs.
Cost-Effective: Compared to other high-temperature materials like ceramics or refractory metals, graphite can be a more cost-effective solution.
Heating Elements: Graphite heating elements are a common design choice. They can be made in various shapes:
Rods: Simple, cylindrical elements.
Stripes: Flat, rectangular elements.
Mesh: Woven graphite mesh for more uniform heating.
Circular/Helical: Shaped for specific heating patterns.
Crucibles: Graphite crucibles are used to hold the material being heated or melted. They're used in processes like casting or sintering.
Fixtures and Supports: Graphite fixtures hold and support the parts being heat-treated, ensuring proper positioning and preventing warping during the process.
Liners and Insulation: Graphite felt, rigid graphite boards, or graphite foil can be used as insulation to reduce heat loss from the hot zone and improve energy efficiency. Graphite boards also used as furnace liners.
Susceptors: In induction heating applications, graphite susceptors absorb the electromagnetic energy and transfer the heat to the workpiece.
Hearth Plates/Base Plates: These provide a stable platform for the workload within the furnace.
Muffles: A graphite muffle can create a separate, controlled atmosphere within the larger furnace chamber.
Fasteners: Graphite bolts, nuts, and washers are used to assemble graphite structures within the furnace.
Gas Nozzles and Distribution Systems: Graphite can be used to create nozzles or other components that direct the flow of gases within the furnace.
Electron Beam Hearth Liners: Used in electron beam melting applications to contain the molten metal.
Several types of graphite are used in vacuum furnace applications, each with its own properties:
Isotropic Graphite: This type has uniform properties in all directions, making it ideal for complex shapes and high-stress applications. It's generally more expensive.
Extruded Graphite: Made by forcing graphite through a die, it has anisotropic properties (different properties in different directions). More cost-effective but may not be suitable for all applications.
Molded Graphite: Formed by compacting graphite powder in a mold.
Carbon Fiber Composites: Graphite fiber reinforced composites offer high strength-to-weight ratios.
Graphite Felt: A flexible insulation material made from graphite fibers.
Rigid Graphite Boards: A more robust insulation made from graphite and binders.
Temperature Requirements: The maximum operating temperature of the furnace will dictate the type of graphite required.
Vacuum Level: The vacuum level affects the rate of sublimation.
Thermal Cycling: The frequency and rate of temperature changes can affect the lifespan of the graphite parts.
Load Requirements: The weight and size of the parts being processed will influence the design and material selection for fixtures and supports.
Atmosphere: Although vacuum furnaces minimize the presence of reactive gases, any residual gases can interact with the graphite.
Contamination Concerns: The purity of the graphite is critical to prevent contamination of the parts being processed.
Machining Requirements: Complex parts may require specialized machining techniques.
Cost: Balancing performance requirements with budget constraints is essential.
