Vacuum Furnace Graphite Accessories

Vacuum Furnace Graphite Accessories Introduction

Vacuum furnaces use graphite accessories extensively due to graphite's unique properties:

High-Temperature Resistance: Maintains strength and integrity even at extremely high temperatures in vacuum conditions.

Low Vapor Pressure: Doesn't significantly outgas at high temperatures, maintaining the vacuum environment.

Thermal Conductivity: Can be tailored for either efficient heating or insulation.

Machinability: Easily shaped into complex geometries.

Chemical Inertness: Resistant to reactions with many materials at high temperatures in vacuum.

Low Density: Helps reduce the overall weight of furnace components.

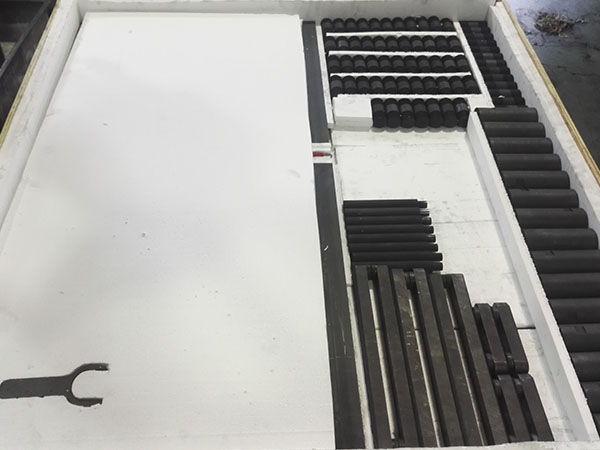

Here's a breakdown of common graphite accessories used in vacuum furnaces:

1. Heating Elements:

Rods/Bars: Simple, robust, and cost-effective for many applications.

Mesh/Felt Heating Elements: Offer more uniform heating and are commonly used for demanding applications.

Ribbon Elements: Provide precise temperature control and rapid heating/cooling.

Spiral Elements: Allow for high power density in a small volume.

Cylindrical Elements: Used for larger furnaces or for specialized heating patterns.

Considerations for heating elements:

Grade of graphite: Different grades have varying purity, density, and strength.

Power requirements: The element's size and design must match the power needed to reach and maintain the desired temperature.

Furnace atmosphere: While graphite is stable in vacuum, it can react with certain gases.

2. Insulation:

Graphite Felt: A fibrous material made from carbon or graphite fibers. Excellent thermal insulator due to its low density and porous structure. Available in various thicknesses and densities.

Graphite Board/Rigid Insulation: Provides structural support and thermal insulation. Can be machined to create complex shapes.

Graphite Foil: Thin sheets used as a radiant barrier to reflect heat back into the hot zone. Often layered to improve insulation effectiveness.

Considerations for insulation:

Emissivity: Affects the amount of radiant heat loss.

Thermal conductivity: Determines how effectively the insulation prevents heat transfer.

Degassing properties: Low outgassing is crucial for maintaining a good vacuum.

3. Work Fixtures/Racks/Trays:

Trays and Racks: Hold the parts being processed during heat treatment, sintering, or other processes. Designed to maximize loading capacity and ensure uniform heating.

Crucibles: Used to contain molten materials during melting or casting processes.

Molds: For casting processes.

Fixtures: Custom-designed to hold specific parts securely and prevent distortion during heat treatment.

Considerations for work fixtures:

Thermal expansion: Must be compatible with the materials being processed to prevent stress and distortion.

Load capacity: Designed to withstand the weight of the load at high temperatures.

Surface finish: A smooth surface can prevent contamination of the parts.

4. Linings and Structural Components:

Furnace Linings: Protect the furnace chamber from heat and potential contamination.

Supports and Brackets: Provide structural support for heating elements, insulation, and work fixtures.

Gas Diffusers: Distribute gases evenly within the furnace chamber for processes like carburizing or nitriding.

5. Screens and Baffles:

Radiation Shields: Reflect radiant heat to improve temperature uniformity and reduce heat loss.

Gas Baffles: Control the flow of gases within the furnace chamber.

Mesh Screens: Can be used to support lightweight loads or to diffuse gases.

6. Specific Applications:

Sintering Furnaces: Graphite crucibles, trays, and fixtures for holding powder metal compacts during sintering.

Heat Treatment Furnaces: Graphite fixtures for holding parts during hardening, annealing, or tempering.

Melting Furnaces: Graphite crucibles for melting metals and alloys.

Chemical Vapor Deposition (CVD) Furnaces: Graphite susceptors to heat substrates during the deposition process.

Crystal Growth Furnaces: Graphite heaters and crucibles for growing single crystals.

Important Considerations When Selecting Graphite Accessories:

Graphite Grade: The choice of graphite grade is crucial and depends on the specific application. Factors to consider include purity, density, strength, thermal conductivity, and cost.

Operating Temperature: The maximum operating temperature of the furnace dictates the type of graphite that can be used.

Furnace Atmosphere: The atmosphere within the furnace (vacuum, inert gas, etc.) can affect the performance and lifespan of graphite components.

Part Geometry: The shape and size of the parts being processed will influence the design of work fixtures and other accessories.

Outgassing: Low outgassing is critical for maintaining a high-quality vacuum. Consider degassing graphite parts before use.

Machining Tolerances: Precise machining is often required to ensure proper fit and performance.
