Graphite products for the heat treatment industry mainly include: graphite heating rods, graphite furnace bed guides, graphite nozzles, graphite conductive rods, graphite connectors, graphite columns, graphite furnace bed holders, graphite screws, graphite nuts and graphite beams.
Home Products Heat Treatment Industry / Graphite Vacuum Furnace Heating Rod

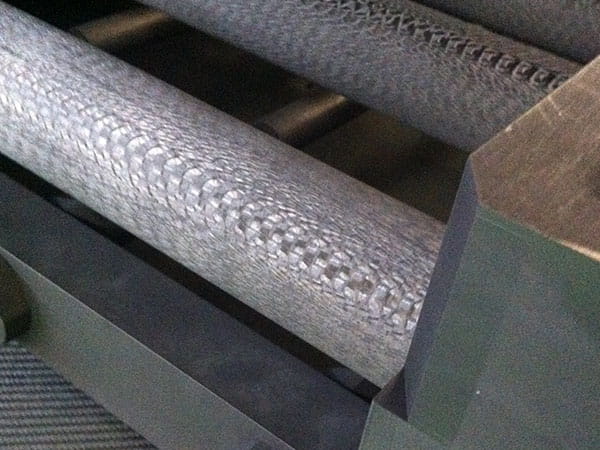

Graphite heating rods are a crucial component of many vacuum furnaces, offering high temperature capability, good electrical conductivity, and relative cost-effectiveness. However, careful consideration must be given to their limitations, such as oxidation sensitivity, brittleness, and outgassing. Proper design, operation, and maintenance are essential for reliable and efficient performance.
Function: Graphite heating rods are the primary heating elements in many types of vacuum furnaces. They generate heat through resistive heating (Joule heating) when an electric current is passed through them. This heat is then radiated onto the load being treated inside the furnace chamber.
Material: They are made from high-purity graphite, typically a fine-grain grade to ensure good electrical conductivity, high temperature strength, and resistance to thermal shock. Different graphite grades exist, tailored for specific temperature ranges, vacuum levels, and load types.
Configuration: They come in various shapes and sizes, designed to optimize heat distribution and fit within the furnace's overall layout. Common configurations include:
Rod-shaped: Simple cylindrical or rectangular rods, often arranged in zones around the workload.
Hairpin or U-shaped: Provide a longer heating length for a given space.
Ribbon or Strip: Offer a larger radiating surface area.
Mesh or Fabricated Structures: More complex designs for specialized heating patterns.
High Temperature Capability: Graphite can withstand extremely high temperatures in a vacuum environment, often exceeding 2000°C (3632°F) and sometimes up to 3000°C. This is significantly higher than many other resistance heating element materials.
Good Electrical Conductivity: Graphite is a relatively good electrical conductor, allowing for efficient conversion of electrical energy into heat.
Chemical Inertness in Vacuum: Graphite is very stable in a vacuum environment at high temperatures. It doesn't readily react with other materials, unlike some metal alloys.
Relatively Low Cost: Compared to some refractory metals (like tungsten or molybdenum), graphite is generally more cost-effective.
Easy Machinability: Graphite can be machined into complex shapes with relative ease, allowing for custom heating element designs.
Uniform Heating: Well-designed graphite heating rod systems can provide very uniform temperature distribution within the furnace chamber, which is critical for many heat treatment processes.
