Graphite Vacuum Furnace Heating Chamber

Graphite Vacuum Furnace Heating Chamber Introduction

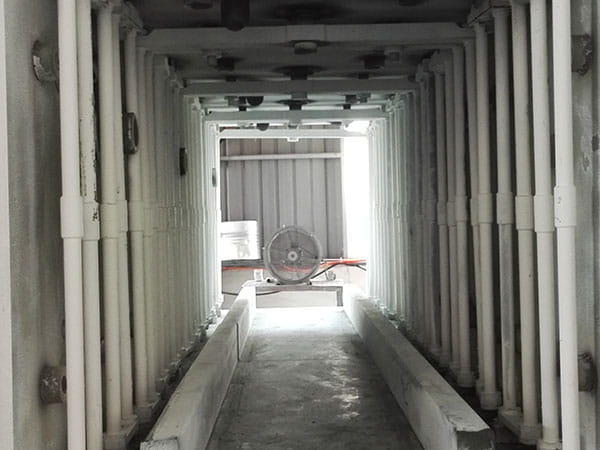

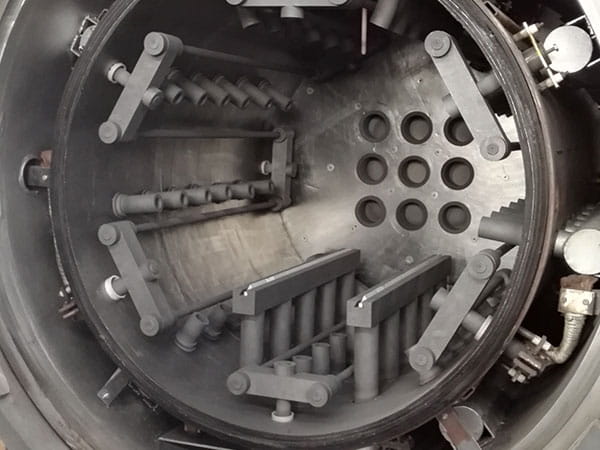

A graphite vacuum furnace heating chamber is a critical component of a vacuum furnace used for heat treating, sintering, brazing, and other high-temperature processes.

Key Components and Materials

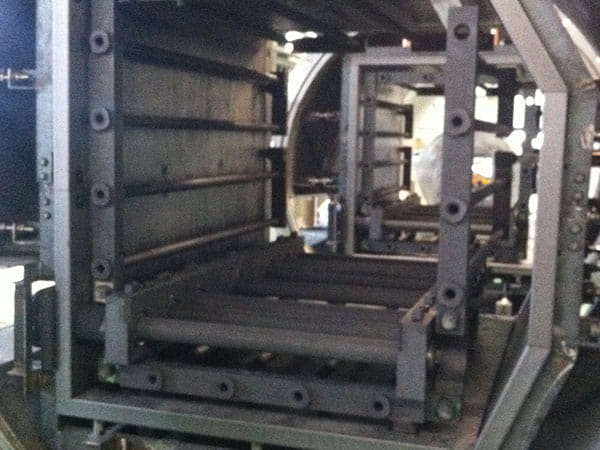

Heating Elements: These are the source of heat within the chamber.

Material: Typically made of high-purity graphite. Different grades of graphite exist, chosen based on temperature requirements, outgassing characteristics, and mechanical strength. Carbon-Carbon Composites (C/C) are sometimes used for even higher temperature applications and improved mechanical properties.

Geometry: Heating elements can take various forms, including:

Rods/Bars: Simple and robust, often used in older designs.

Mesh/Felt: Provides more uniform heating and is lightweight.

Ribbon: Offer large radiating surface for faster heating.

Cylindrical: Offers very uniform heating around the heated volume.

Arrangement: The heating elements are strategically arranged around the workpiece to ensure uniform temperature distribution. This is critical for consistent heat treatment results. Computer modeling (Finite Element Analysis - FEA) is often used to optimize element placement.

Hot Zone Insulation: This surrounds the heating elements and workpiece to minimize heat loss to the furnace chamber walls. It's crucial for energy efficiency and maintaining the desired temperature.

Material:

Graphite Felt: A common and cost-effective choice. Different densities and thicknesses are available. Can be prone to dusting.

Carbon Fiber Composite (CFC): More expensive than graphite felt but offers superior insulation, higher temperature capability, and less outgassing. It's also stronger.

Rigid Graphite Boards: Used for structural support within the hot zone and can also provide insulation.

Multi-Layer Insulation (MLI): Consists of multiple layers of thin, highly reflective metal foils (e.g., stainless steel, molybdenum) separated by vacuum gaps.

Extremely effective insulation for very high temperatures and deep vacuum levels. More complex and costly.

Workpiece Support Structure: This holds the parts being heat treated.

Material: Graphite is the most common, chosen for its high-temperature strength and compatibility with the vacuum environment. Other materials include refractory metals like molybdenum and tungsten for extremely high temperatures.

Design: Must be designed to minimize contact area with the workpiece to reduce heat sinking and promote uniform heating. It also needs to withstand the weight of the parts at high temperatures without deforming.

Thermocouples: Used to measure the temperature inside the hot zone.

Type: Typically Type C (Tungsten-Rhenium) thermocouples are used for high-temperature vacuum furnaces. They need to be protected from direct radiation from the heating elements and the workpiece.

Power Feedthroughs: These are insulated electrical connections that pass through the furnace chamber wall to deliver power to the heating elements. They must be designed to handle high currents and voltages in a vacuum environment.

Vacuum Chamber: The outer shell of the furnace, which maintains the vacuum environment.

Material: Typically stainless steel.

Design: Must be vacuum-tight and capable of withstanding the pressure differential between the atmosphere and the vacuum inside. Water cooling may be required to dissipate heat from the chamber walls.

Design Considerations

Temperature Uniformity: A primary goal is to achieve and maintain a uniform temperature distribution throughout the workpiece. This is influenced by the heating element arrangement, insulation design, and chamber geometry.

Heating and Cooling Rates: The design must allow for controlled heating and cooling rates, which are crucial for achieving the desired metallurgical properties.

Outgassing: Graphite and other materials used in the chamber can release gases (outgassing) when heated in a vacuum. This can contaminate the vacuum and affect the heat treatment process. High-purity materials and pre-baking are used to minimize outgassing.

Vacuum Level: The desired vacuum level dictates the type of vacuum pumps required and the leak-tightness of the chamber. Higher vacuum levels generally require more sophisticated designs and materials.

Power Requirements: The size and arrangement of the heating elements determine the power requirements of the furnace.

Workpiece Size and Weight: The chamber dimensions and support structure must be designed to accommodate the size and weight of the workpieces being treated.

Maintenance and Accessibility: The design should allow for easy access to the heating elements and other components for maintenance and replacement.

Safety: Safety interlocks and other features are necessary to protect personnel from electrical hazards, high temperatures, and vacuum hazards.
