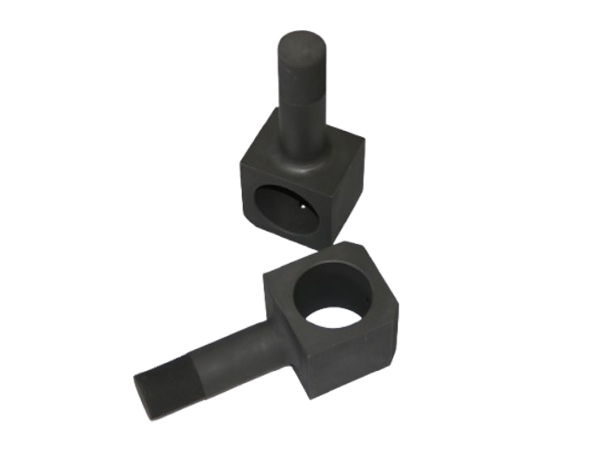

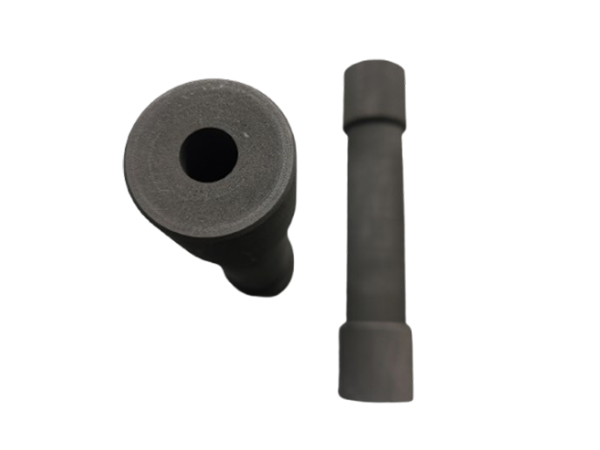

Graphite Joints

Graphite joints refer to connections between components where graphite is a key material. These connections can serve various purposes and be implemented in different ways, depending on the application.

What are Graphite Joints?

Graphite joints are connections that utilize graphite (usually high-purity, isotropic graphite) for its unique properties. These properties include:

High-Temperature Resistance: Graphite maintains strength and stability at extremely high temperatures, making it ideal for furnaces, crucibles, and other high-heat environments.

Chemical Inertness: Graphite resists reaction with many chemicals, extending the lifespan of equipment exposed to corrosive substances.

Lubricity: Graphite is self-lubricating, reducing friction and wear in moving parts.

Thermal Conductivity: Graphite can conduct heat effectively, which is useful for heat transfer applications.

Electrical Conductivity: Graphite can conduct electricity, important for electrode connections and electrical contacts.

Types of Graphite Joints

Threaded Joints: Graphite components can be threaded and screwed together, especially in situations where high temperature or chemical resistance is important. A sealant compatible with graphite is often used.

Flanged Joints: Graphite flanges can be bolted together with gaskets (often also graphite-based, like flexible graphite) to create a sealed connection in piping systems or reactor vessels. The flange itself may be made of a more conventional material, with a graphite liner for corrosion resistance.

Slip Joints: Because of its lubricating properties, graphite can be used in slip joints where controlled movement is desired.

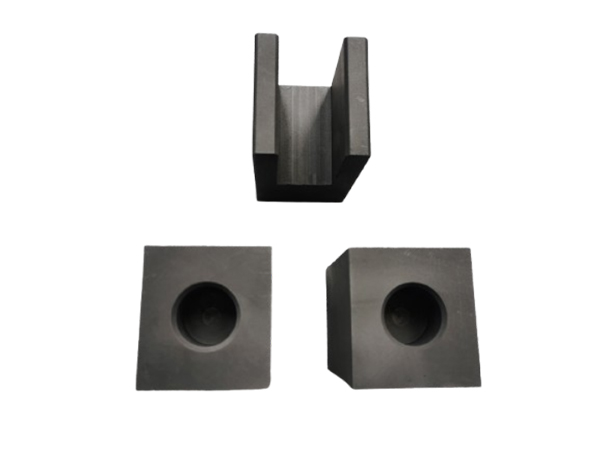

Mortise and Tenon Joints: Occasionally, interlocking graphite pieces can be used to create strong and heat-resistant connections in structural elements.

Interference Fits (Shrink Fits): Graphite components can be designed for interference fits, where one part is heated to expand it, and then the other part is inserted.

As the heated part cools, it shrinks and creates a strong, tight joint. Great care is needed with graphite due to its brittleness.

Adhesive Bonding: While challenging, it's possible to bond graphite using specialized high-temperature adhesives. Surface preparation is critical.

Mechanical Fasteners: Pins, rivets, or clamps can be used to hold graphite components together, although care must be taken to avoid over-stressing the brittle graphite.

Applications

High-Temperature Furnaces: Graphite heating elements and structural components are often joined together using threaded connections or interference fits.

Chemical Processing Equipment: Graphite-lined vessels and piping systems utilize flanged joints with graphite gaskets to resist corrosion.

Crucibles and Molds: Graphite crucibles and molds are sometimes assembled from multiple parts using mortise and tenon or other interlocking joint designs.

Electrode Connections: Graphite electrodes are often connected using threaded joints or clamped connections.

Nuclear Reactors: Graphite is used as a moderator in some nuclear reactors, and graphite components might need to be joined using specialized techniques.

Vacuum Furnaces: Graphite components can be joined for vacuum furnace applications because of their high temperature resistance and stability in vacuum.

Aerospace: Although less common, graphite composites can be used in aerospace applications and require specialized jointing techniques.

Considerations When Designing Graphite Joints

Material Properties: Graphite is brittle and has relatively low tensile strength. Joints should be designed to minimize tensile stresses and avoid sharp corners that could concentrate stress.

Thermal Expansion: Graphite has a relatively low coefficient of thermal expansion, but it's still important to account for thermal expansion and contraction when designing joints that operate at high temperatures. The CTE can vary depending on the grade and direction of the graphite.

Friction: Graphite is self-lubricating, which can be an advantage or a disadvantage depending on the application.

Sealing: If the joint needs to be sealed, use compatible gaskets or sealants. Flexible graphite gaskets are a common choice.

Surface Finish: The surface finish of the graphite can affect the strength and sealing ability of the joint.

Machining: Graphite is relatively easy to machine, but it's important to use sharp tools and avoid excessive force to prevent chipping or cracking.

Joint Preload (Bolt Torque): When using bolts, apply the correct preload (torque) to ensure a tight seal and prevent loosening. Don't over-tighten, as graphite can crack. Consider Belleville washers to maintain preload during thermal cycling.

Atmosphere: The atmosphere can affect the performance of graphite. For example, graphite can oxidize at high temperatures in air.
