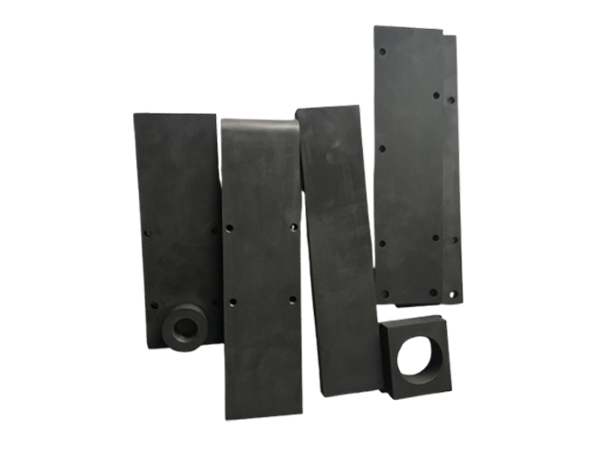

Graphite connecting plates are versatile components utilized across numerous industries, offering a robust solution for connecting parts, providing structural support, and enabling electrical conductivity in environments where extreme temperatures, corrosive substances, or vacuum conditions prevail. Understanding the material properties of graphite and the requirements of the specific application is crucial for selecting the optimal connecting plate.
Definition: It's essentially a flat piece of graphite material designed to join, support, or electrically connect other components in a system.
Material: It is made from graphite, a form of carbon known for its:
Excellent electrical conductivity
High thermal conductivity
Exceptional resistance to high temperatures
Inertness to many chemicals
Self-lubricating properties
High-Temperature Stability: Graphite can withstand extremely high temperatures without melting or degrading significantly.
Chemical Resistance: It is resistant to attack by many acids, alkalis, and solvents.
Electrical Conductivity: Graphite is a good conductor of electricity, making it suitable for electrical connections.
Thermal Conductivity: It efficiently conducts heat, helping to dissipate heat in certain applications.
Low Thermal Expansion: Graphite has a relatively low coefficient of thermal expansion, which means it undergoes minimal dimensional changes with temperature fluctuations.
Self-Lubricating: Graphite's layered structure allows it to act as a solid lubricant, reducing friction between components.
Machinability: It can be readily machined into various shapes and sizes.
Lightweight: Compared to some other materials, graphite is relatively lightweight.
Vibration Dampening: It offers some degree of vibration dampening in specific applications.
Graphite connecting plates are used in diverse industries and applications, including:
High-Temperature Furnaces: Joining heating elements, shielding, and other components.
Semiconductor Manufacturing: As connectors in high-temperature processing equipment.
Electrochemical Processes: As current collectors or connectors in batteries, electrolysis cells, and electroplating.
Metallurgy: In molten metal handling, as connectors in casting molds, and for high-temperature tooling.
Solar Energy: As components in solar receivers and concentrators.
Vacuum Furnaces: Connecting and supporting components in vacuum environments.
Chemical Processing: In systems involving corrosive chemicals where other materials would degrade.
Spark Erosion (EDM): Connecting electrodes.
Performance in Extreme Environments: When high temperature, corrosive conditions, or electrical conductivity are critical, graphite provides advantages over other materials like metals or ceramics.
Reliability: Graphite's inherent stability contributes to the reliability and longevity of the overall system.
Customization: Graphite can be easily machined to meet specific design requirements.
Cost-Effectiveness: In certain applications, graphite's performance characteristics can lead to cost savings due to increased lifespan and reduced maintenance.
Grade of Graphite: Different grades of graphite have varying properties, such as density, strength, and thermal conductivity. Selecting the appropriate grade is essential for the specific application.
Size and Shape: The dimensions and geometry of the plate must be suitable for the intended connection and load requirements.
Machining Tolerances: Precise machining is often necessary to ensure proper fit and alignment with other components.
Operating Conditions: Temperature, pressure, chemical environment, and electrical current all influence the selection of the appropriate graphite grade and design.
