Most consumers have probably never considered the relationship between carbon graphite and the glass industry. Actually graphite is the ideal material for glass manufacturing due to its physical and chemical composition properties.

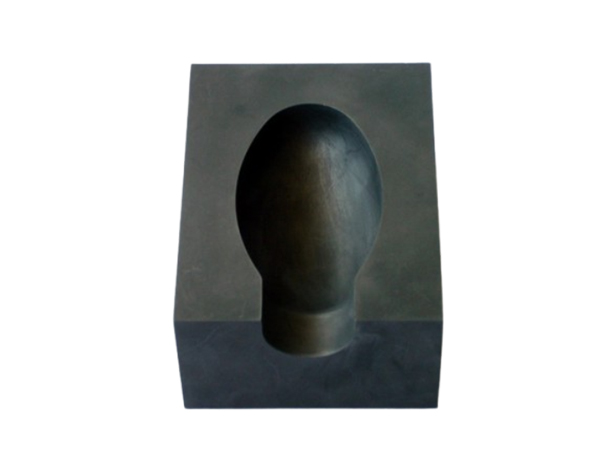

Home Products Glass Industry / Graphite Molds for Blowing Glass
Graphite molds are indispensable for glassblowing because they offer the right combination of heat resistance, thermal conductivity, lubricity, and machinability to shape molten glass accurately and reliably. They are a vital tool for both functional and artistic glass pieces.
Graphite molds are a crucial tool in the art of glassblowing, offering several advantages over other materials. Here's a breakdown of their use and benefits:
Heat Resistance: Graphite can withstand extremely high temperatures without melting or deforming, essential for handling molten glass (typically around 2000°F/1100°C).
Thermal Conductivity: Graphite is a good conductor of heat, allowing it to quickly and evenly distribute heat across the glass surface. This helps prevent thermal shock and cracking as the glass cools.
Low Coefficient of Thermal Expansion: This means graphite expands and contracts very little with temperature changes, minimizing stress on the glass.
Non-Reactive: Graphite is relatively inert and doesn't react chemically with molten glass, preventing unwanted discoloration or contamination. Some materials can impart color or defects to the glass.
Lubricity: Graphite has a naturally slippery surface, which allows the molten glass to move smoothly within the mold without sticking or causing distortions. This "self-lubricating" quality is key.
Machinability: Graphite is relatively easy to machine into complex shapes, making it possible to create molds for a wide variety of glass objects. This is essential for producing specific designs.
Durability (with caveats): While graphite can break down over time (oxidation), it can last a reasonable amount of time if treated properly.
Mold Preparation: The graphite mold is often preheated to prevent thermal shock to the molten glass. The degree of preheating depends on the size and complexity of the mold.
Gathering the Glass: The glassblower gathers molten glass from a furnace (glory hole) on the end of a blowpipe.
Inserting into the Mold: The molten glass is carefully inserted into the preheated graphite mold. The glassblower often rotates the blowpipe while blowing to evenly distribute the glass.
Blowing and Shaping: The glassblower blows air into the blowpipe to inflate the glass within the mold. The shape of the mold dictates the final form of the glass.
Reheating and Further Shaping: The glass may be reheated multiple times (in the glory hole) and returned to the mold to achieve the desired shape and thickness. The mold is crucial for establishing the initial form.
Releasing the Glass: Once the desired shape is achieved, the glass is carefully removed from the mold. This can involve tapping the mold or using tools.
Annealing: The glass piece is then placed in an annealer (a temperature-controlled oven) to slowly cool down. This process relieves internal stresses in the glass and prevents cracking.
Open Molds: Simple molds with one opening. Used for basic shapes like bowls, cups, and vases.
Closed Molds: More complex molds with two or more sections that close around the glass. Used for intricate shapes and designs.
Plunger Molds: These molds use a plunger to press the glass into a specific shape. Common in industrial glass production.
Optical Molds: Used to create optical effects in the glass, such as lenses or prisms. They require extremely precise machining.
Specialty Molds: Designed for unique and artistic glassblowing techniques. These can be extremely complex and specialized.
Graphite Grade: The type of graphite used affects its properties (strength, density, heat resistance, etc.). Finer-grained graphite produces smoother surfaces.
Mold Design: The design of the mold is crucial for achieving the desired shape and preventing defects. Consider draft angles, venting, and ease of use.
Mold Maintenance: Graphite molds should be cleaned regularly to remove glass residue. Avoid harsh chemicals.
Oxidation: Graphite slowly oxidizes (burns) at high temperatures in the presence of oxygen. This can be minimized by using a protective coating or a reducing atmosphere.
Cost: Graphite molds can be expensive, especially for complex designs. Consider the cost-benefit in relation to the number of pieces to be produced.
