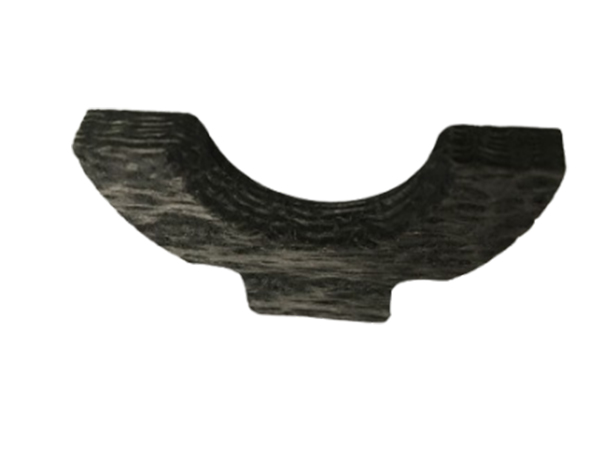

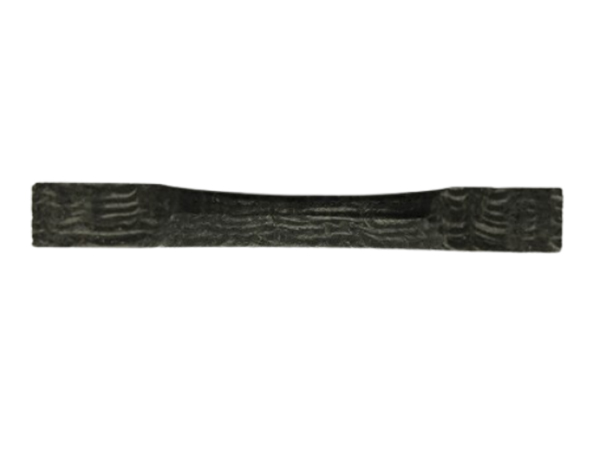

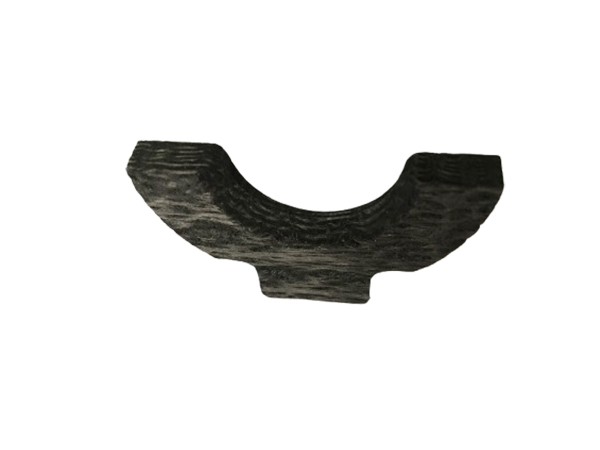

CFC grippers offer a superior solution for handling glass containers in a variety of industrial applications. Their unique combination of strength, lightweight, non-marring properties, and customizable designs makes them ideal for delicate and precise handling, resulting in reduced breakage, increased efficiency, and improved overall productivity. When choosing a CFC gripper, it is important to carefully consider the specific requirements of the application and to work with a reputable supplier who can provide a custom-designed solution.
CFC grippers, or carbon fiber composite grippers, are specialized end-of-arm tooling (EOAT) solutions specifically designed for handling glass containers. They offer several advantages over traditional gripper materials like metal or rubber when it comes to delicate and precise glass handling.
High Strength-to-Weight Ratio: CFC is incredibly strong and lightweight. This allows for faster acceleration and deceleration of the robotic arm, improving cycle times and overall efficiency. The reduced weight also minimizes the strain on the robot.
Non-Marring and Non-Abrasive: Unlike metal, CFC is inherently less abrasive and doesn't easily scratch or damage the glass surface. This is crucial for maintaining the integrity and aesthetic appeal of the containers.
Customizable Designs: CFC can be molded into complex shapes and sizes, allowing for tailored gripper designs that perfectly fit the specific geometry of the glass containers being handled. This ensures a secure and reliable grip.
Vibration Damping: CFC has excellent vibration damping properties, which helps to minimize shock and impact during handling. This is especially important when dealing with fragile glass items.
Chemical Resistance: CFC is resistant to many chemicals commonly found in manufacturing environments, ensuring longevity and reliability of the grippers.
Thermal Stability: CFC maintains its shape and properties over a wide temperature range, which can be important in certain glass manufacturing or filling processes.
Vacuum Grippers: Often combined with CFC bodies for gentle suction lifting of glass containers. The CFC structure provides a lightweight and rigid support for the vacuum cups. Vacuum cups are typically made of soft materials like silicone or rubber to further protect the glass.
Mechanical Grippers: Use specially shaped "fingers" or jaws made of CFC or coated with non-marring materials to grip the containers. The fingers are designed to distribute pressure evenly and prevent cracking or chipping.
Form-Fitting Grippers: Custom-molded to the specific shape of the container. These are ideal for irregularly shaped bottles or containers.
Contact Points: The areas where the gripper makes contact with the glass container are critical. These points are often padded with soft, compliant materials like silicone, urethane, or specialized non-marring polymers to protect the glass surface.
Gripping Force Control: Precise control of the gripping force is essential to avoid crushing or damaging the glass. Sophisticated control systems and sensors are often used to monitor and adjust the gripping force in real-time.
Sensor Integration: CFC grippers can be equipped with sensors to detect the presence and position of the glass container, as well as to monitor the gripping force and ensure a secure hold. Proximity sensors, force sensors, and vision systems are commonly used.
Cleaning and Maintenance: CFC grippers are generally easy to clean and maintain. Regular cleaning with mild detergents and inspection for wear and tear is recommended.
Customization: One of the biggest advantages of CFC grippers is their ability to be customized. Grippers can be designed to handle specific container sizes, shapes, and weights. Customization also allows for the integration of specific features, such as quick-change mechanisms or multiple gripping points.
Glass Manufacturing: Handling glass containers during forming, cooling, and quality control processes.
Bottling and Filling: Picking, placing, and orienting glass bottles in filling lines.
Packaging: Loading glass containers into boxes or other packaging materials.
Inspection and Sorting: Identifying and sorting defective or damaged glass containers.
Pharmaceutical and Laboratory Settings: Handling glass vials, test tubes, and other sensitive containers.
Reduced breakage and damage to glass containers
Increased cycle times and throughput
Improved efficiency and productivity
Enhanced safety
Reduced maintenance costs
Greater flexibility in handling different container shapes and sizes
Container shape and size: Knowing the exact dimensions and geometry of the glass containers is crucial for designing a custom gripper.
Weight of the container: The gripper must be strong enough to securely hold the container without causing damage.
Cycle time requirements: The gripper should be lightweight and responsive to minimize cycle times.
Environmental conditions: The gripper should be resistant to any chemicals, temperatures, or other environmental factors present in the application.
Budget: CFC grippers can be more expensive than traditional grippers, but the benefits of reduced breakage and increased efficiency can often justify the investment.
