Graphite products for diamond sintering molds mainly include: sintered graphite combination molds for diamond grinding wheels, sintered graphite molds for diamond drum grinders, high-purity and high-density graphite molds for straightening teeth, molds for shaped graphite parts, sintered graphite molds for diamond straight cutterheads, sintering trays, sintering racks, etc.
Home Products Diamond Sintering Industry / Graphite Wire Saw Die

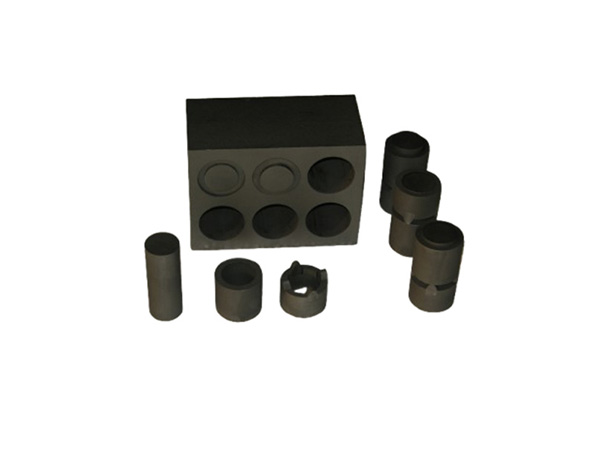

A graphite wire saw die is a highly specialized component that plays a critical role in wire EDM. It's a precisely machined graphite piece that guides and supports the wire, enabling the accurate and efficient cutting of materials using electrical discharges. Its applications are vast and span across many industries requiring high-precision manufacturing.
A graphite wire saw die is a specialized component used in wire Electrical Discharge Machining (EDM), specifically designed for cutting materials using a thin wire electrode and controlled electrical discharges. The graphite die serves as a guide and support for the wire as it cuts through the workpiece.
Graphite: This is the material the die is made from. Graphite is chosen for several key reasons:
Excellent Electrical Conductivity: Essential for EDM, allowing the electrical discharge to be focused and controlled at the cutting point.
Good Thermal Conductivity: Helps dissipate heat generated during the EDM process, preventing overheating and damage.
Low Coefficient of Thermal Expansion: Minimizes dimensional changes due to heat, maintaining accuracy during cutting.
Machinability: Graphite is relatively easy to machine to precise tolerances, allowing for intricate die designs.
Wear Resistance: Although graphite does erode over time, high-quality EDM graphite grades offer good resistance to the abrasive effects of the wire and the debris generated during cutting.
Wire Saw: In the context of EDM, the "wire saw" is the thin, conductive wire (typically made of brass, copper, tungsten, or molybdenum) that acts as the cutting tool. It's constantly moving and fed through the workpiece. The wire doesn't actually "saw" in the traditional sense; instead, it acts as an electrode that creates a series of sparks that erode the material.
Die: In manufacturing, a die is a specialized tool used to shape or cut material. In this case, the graphite die performs several crucial functions:
Wire Guidance: The die has precisely machined openings (often small and intricate) that guide the wire accurately through the workpiece. This ensures the desired cut path is followed.
Support: The die provides physical support to the wire, preventing it from deflecting or vibrating excessively. This is especially important when cutting tall or complex shapes.
Insulation: Sometimes, the die can also provide electrical insulation, directing the electrical discharge precisely to the desired cutting zone.
Workpiece Clamping: The die might incorporate features for clamping the workpiece in place, ensuring stability and preventing movement during the cutting process.
Setup: The graphite wire saw die is carefully positioned and aligned in the wire EDM machine. The workpiece is securely mounted in relation to the die.
Wire Threading: The wire is threaded through the die's guiding openings and tensioned properly.
EDM Process:
A dielectric fluid (usually deionized water or oil) surrounds the wire and the workpiece. This fluid acts as an insulator and helps flush away eroded material.
A voltage is applied between the wire (electrode) and the workpiece.
As the wire approaches the workpiece, the voltage creates a spark (electrical discharge) that vaporizes a tiny amount of material from both the wire and the workpiece.
The wire is moved along the programmed path, guided by the die, creating a continuous cut.
The dielectric fluid cools the cutting zone and flushes away the debris.
Cutting: The wire precisely cuts through the workpiece following the path defined by the die.
Applications:
Graphite wire saw dies are used in a wide range of industries for high-precision cutting of various materials, including:
Tool and Die Making: Creating intricate shapes for molds and dies used in manufacturing.
Aerospace: Machining complex components from hard-to-cut alloys like titanium and Inconel.
Medical Devices: Manufacturing precision medical implants and instruments.
Electronics: Cutting circuit boards, semiconductors, and other electronic components.
Automotive: Creating prototypes and specialized parts.
Jewelry: Cutting intricate designs in precious metals.
Research and Development: Creating prototypes and experimental parts for various scientific and engineering applications.
High Precision: Enables extremely accurate and intricate cuts.
Ability to Cut Hard Materials: Can cut materials that are difficult or impossible to machine using conventional methods.
Minimal Material Waste: The narrow kerf (width of the cut) of the wire minimizes material waste.
Good Surface Finish: Produces a relatively smooth surface finish, often eliminating the need for secondary finishing operations.
Complex Geometries: Can create complex 2D and 3D shapes.
Die Design: Proper die design is crucial for accuracy and performance. Factors to consider include wire diameter, cutting speed, workpiece material, and desired surface finish.
Graphite Grade: Choosing the appropriate grade of graphite is essential for optimal electrical conductivity, wear resistance, and machinability.
Dielectric Fluid: Selecting the right dielectric fluid is important for cooling, flushing, and insulation.
Wire Tension: Maintaining proper wire tension is critical for accuracy and preventing wire breakage.
Die Wear: Graphite dies will wear over time and may need to be replaced.
