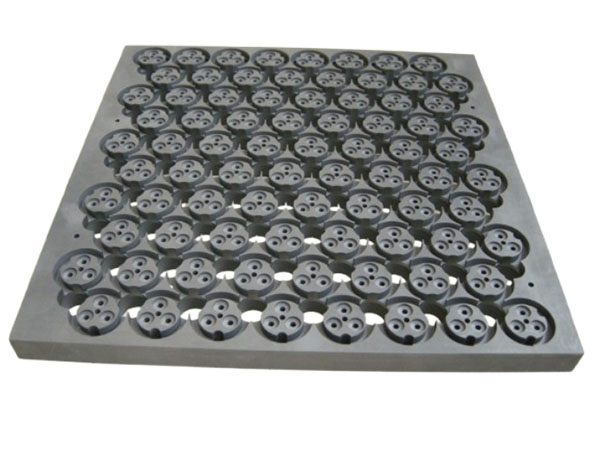

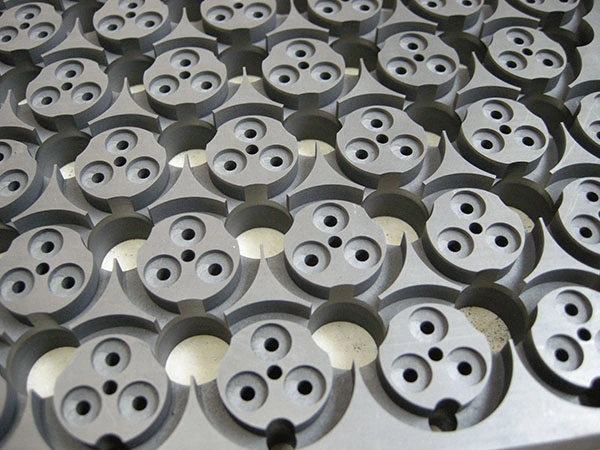

Graphite Sintering Tray

Graphite Sintering Tray Introduction

A graphite sintering tray is a container made of graphite that is designed to hold powdered materials during the sintering process, providing a stable, high-temperature-resistant platform for consolidation.

Key Features and Benefits of Graphite Sintering Tray

High-Temperature Resistance: Graphite can withstand extremely high temperatures (well above 1000°C, sometimes up to 3000°C) without melting or significantly degrading. This is essential for sintering various materials.

Thermal Conductivity: Graphite's good thermal conductivity ensures uniform heating of the powder, promoting consistent sintering.

Chemical Inertness: Graphite is generally unreactive with most materials at high temperatures, preventing unwanted reactions with the powder being sintered or the furnace atmosphere. This is crucial for maintaining the purity of the sintered product.

Dimensional Stability: Graphite maintains its shape and dimensions at high temperatures, ensuring the sintered part retains its intended form.

Machinability: Graphite is easily machinable, allowing for the creation of trays with specific shapes and dimensions to suit different sintering requirements.

Low Friction: Graphite has self-lubricating properties, which can help in the removal of sintered parts from the tray.

Cost-Effective: Compared to some other high-temperature materials, graphite can be a more economical option.

Graphite Sintering Tray Applications

Graphite sintering trays are used in a wide range of industries and applications, including:

Powder Metallurgy: Sintering metal powders to create metal parts.

Ceramics Manufacturing: Sintering ceramic powders to produce ceramic components.

Cemented Carbide Production: Sintering tungsten carbide and other hard materials.

Additive Manufacturing (3D Printing): Sintering metal or ceramic parts produced by 3D printing.

Electronics Industry: Sintering electronic components.

Research and Development: Sintering experimental materials.
