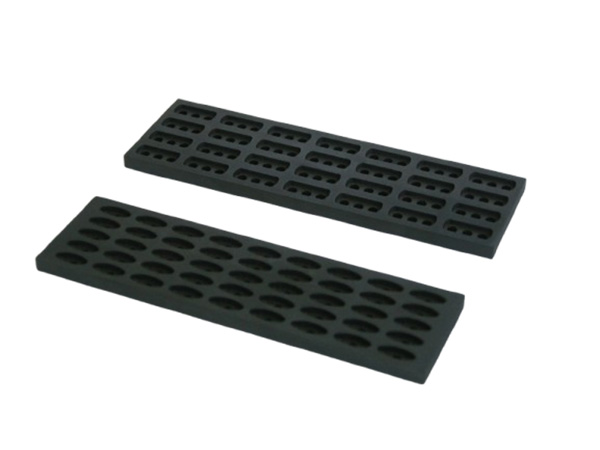

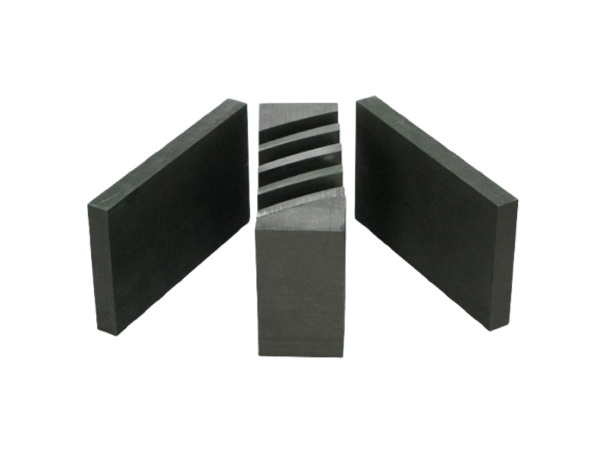

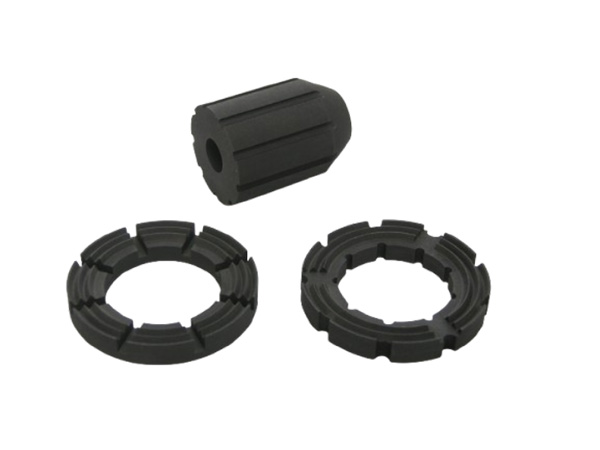

Graphite Sintering Mold

What is a Graphite Sintering Mold?

A graphite sintering mold is a custom-designed mold made from graphite (specifically, a high-purity, high-density grade) used to contain and shape powdered materials during the sintering process. Sintering involves heating these powdered materials (metals, ceramics, carbides, etc.) to a high temperature, just below their melting point, causing the particles to fuse together, forming a solid, cohesive mass. The mold provides the form and support required during this transformation.

Why Graphite? Key Properties of Graphite for Sintering Molds

Graphite is chosen for sintering molds due to its unique combination of properties:

High-Temperature Resistance: Graphite maintains its strength and dimensional stability at extremely high temperatures (up to 3000°C in inert environments), making it suitable for sintering a wide range of materials.

Excellent Thermal Conductivity: Graphite conducts heat effectively, allowing for uniform heating and cooling of the powder compact, which is critical for consistent sintering and minimizing thermal stress. This prevents cracking and warping of the part.

Low Thermal Expansion: Graphite has a relatively low coefficient of thermal expansion, reducing the risk of cracking or deformation of the mold and the sintered part during heating and cooling cycles. This helps maintain dimensional accuracy.

Chemical Inertness: Graphite is resistant to chemical reactions with most materials at high temperatures, preventing contamination of the sintered part. It's particularly important when sintering reactive metals or alloys.

Self-Lubrication: Graphite's inherent lubricity helps facilitate the easy removal of the sintered part from the mold after the process is complete. This reduces the risk of damage to the part and mold.

Machinability: Graphite is relatively easy to machine into complex shapes and intricate designs, allowing for the creation of molds tailored to specific part geometries.

Cost-Effective (Relatively): Compared to some other high-temperature materials like ceramics or refractory metals, graphite can be a more cost-effective option, especially for complex mold designs.

Applications of Graphite Sintering Molds

Graphite sintering molds are used in a wide variety of industries and applications, including:

Powder Metallurgy (PM): Sintering metal powders to produce finished or near-net-shape parts. Common materials include iron, steel, aluminum, copper, tungsten, and titanium alloys. Applications span automotive, aerospace, medical, and consumer goods.

Cemented Carbides (Hardmetals): Sintering tungsten carbide (WC) with a binder metal (typically cobalt) to create extremely hard and wear-resistant cutting tools, dies, and wear parts.

Ceramics: Sintering ceramic powders (e.g., alumina, zirconia, silicon carbide, silicon nitride) to produce structural ceramics, electronic components, and refractories.

Refractory Materials: Manufacturing high-temperature resistant materials for furnace linings, crucibles, and other applications.

Diamond Tool Manufacturing: Sintering diamond grit with a metal matrix to create diamond grinding wheels, cutting blades, and drilling bits.

Nuclear Industry: Sintering nuclear fuel pellets (e.g., uranium dioxide).

Additive Manufacturing (3D Printing) Debinding and Sintering: Graphite molds are often used in the final debinding and sintering stages of metal and ceramic parts produced by 3D printing processes.

Types of Graphite Used for Sintering Molds

The type of graphite used for a sintering mold is crucial to its performance and longevity. Common types include:

Isostatically Pressed Graphite: This type of graphite is produced by applying uniform pressure in all directions during the molding process. It results in a highly dense, homogenous material with excellent strength and thermal conductivity. It's often the preferred choice for demanding applications requiring high precision and durability.

Extruded Graphite: Extruded graphite is made by forcing a graphite mixture through a die. It is generally less expensive than isostatically pressed graphite but may have slightly lower density and strength. It's suitable for simpler mold geometries and less demanding applications.

Molded Graphite: This type is produced by pressing graphite powder into a mold. It can be a cost-effective option for large or complex shapes.

Carbon-Carbon Composites: In some specialized applications where extreme high-temperature strength and low weight are required, carbon-carbon composites may be used, although they are considerably more expensive.

Design Considerations for Graphite Sintering Molds

Designing an effective graphite sintering mold requires careful consideration of several factors:

Part Geometry: The mold design must accurately reflect the desired shape and dimensions of the sintered part, accounting for shrinkage during sintering. Complex shapes may require multi-part molds.

Sintering Temperature and Atmosphere: The mold material must be able to withstand the high temperatures and specific atmosphere (e.g., vacuum, inert gas, reducing atmosphere) used during sintering.

Powder Properties: The flowability, packing density, and shrinkage characteristics of the powder being sintered influence the mold design and the need for venting.

Mold Strength and Durability: The mold must be strong enough to withstand the forces exerted during handling, pressing (if applicable), and sintering. The mold's lifespan is also a key consideration.

Thermal Stress Management: Sharp corners and abrupt changes in thickness can lead to thermal stress concentrations and cracking. The mold should be designed to minimize these stress points through the use of radii and gradual transitions.

Gas Venting: Proper venting is crucial to allow gases released during sintering to escape, preventing pressure buildup and potential defects in the sintered part. This is particularly important when debinding organic binders.

Ejection Mechanism: The mold design should incorporate a mechanism for easily removing the sintered part without damaging it or the mold.

Mold Coatings: Coatings can be applied to graphite molds to improve their performance and lifespan. Examples include:

Pyrolytic Carbon Coatings: Improve surface finish, reduce reactivity, and improve release.

Silicon Carbide (SiC) Coatings: Enhance wear resistance and oxidation resistance.

Chemical Vapor Deposition (CVD) Coatings: Offer a range of properties depending on the coating material.

Shrinkage Allowance: Graphite will expand with heat, as will the material being sintered. However, the material being sintered will also shrink during the process.

This difference in expansion and shrinkage needs to be factored into the mold design to achieve the correct final dimensions of the part.

Advantages of Using Graphite Sintering Molds

High-Quality Sintered Parts: Enables the production of parts with controlled dimensions, density, and microstructure.

Cost-Effectiveness: Graphite is often a cost-effective material compared to other high-temperature alternatives.

Versatility: Suitable for sintering a wide range of materials and part geometries.
