Graphite Mouth Piece

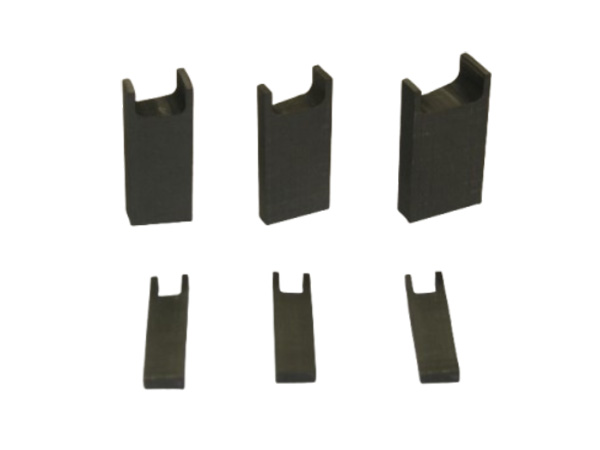

Graphite Mouth Piece Overview

Graphite mouth piece, also often called graphite dies or molds, are critical components in the diamond sintering industry. Here's a breakdown of their importance, design considerations, and material properties:

Why Graphite?

Graphite is chosen for mouthpieces/dies due to its unique combination of properties:

High Temperature Resistance: Withstands the extremely high temperatures (typically 1300-1500°C and sometimes higher) needed for sintering diamond particles.

Electrical Conductivity: Essential for resistive heating, a common method used to generate the sintering temperature. The graphite die acts as the heating element.

Thermal Conductivity: Helps to distribute heat evenly throughout the workpiece (diamond powder and binder mixture).

Low Coefficient of Thermal Expansion: Minimizes dimensional changes and potential cracking during heating and cooling cycles.

Self-Lubricating: Reduces friction and wear against the punch or ram that applies pressure.

Machinability: Graphite can be precisely machined into complex shapes, allowing for the creation of dies that produce specific diamond tool geometries (e.g., saw blades, drill bits, grinding wheels).

Chemical Inertness: Relatively inert, so it doesn't readily react with the diamond or binder materials at high temperatures. However, oxidation in air is a significant concern.

Cost-Effectiveness: Compared to some alternative high-temperature materials (e.g., ceramics, refractory metals), graphite offers a good balance of performance and cost.

Function and Design Considerations

The graphite mouthpiece (die) serves several critical functions:

Containment: Holds the diamond powder and binder mixture in the desired shape during the sintering process.

Heat Source: As mentioned above, it often acts as the resistance heating element. Electrical current is passed through the graphite, generating heat directly within the die. Sometimes, it can be heated inductively.

Pressure Transmission: The die must be strong enough to withstand the high pressures (often in the range of tens to hundreds of MPa) applied during sintering.

Shape Definition: The internal cavity of the die defines the final shape and dimensions of the diamond composite.

Design Considerations:

Geometry: The internal cavity is precisely machined to the desired shape of the diamond tool segment. This includes any intricate details like slots, curves, or tapers.

Wall Thickness: Must be sufficient to withstand the pressure and thermal stresses. A thicker wall generally provides more strength, but also increases the thermal mass, potentially requiring more energy to heat.

Electrical Contacts: The design includes provisions for making reliable electrical connections to the power supply. This could involve threaded holes, clamping surfaces, or other methods.

Cooling Channels: Some dies incorporate cooling channels (water or gas) to help control the temperature gradient and prevent overheating.

Venting: Small vent holes may be included to allow gases to escape during the sintering process.

Tolerances: Very tight tolerances are required to ensure accurate shaping of the diamond composite and proper fit within the sintering press.

Number of Cavities: Dependant on throughput needs, some dies may have several cavities.

Material Properties and Grades of Graphite

Not all graphite is created equal. The specific grade of graphite used is critical for performance and longevity. Factors to consider:

Grain Size: Finer grain graphite generally provides better strength, surface finish, and resistance to erosion.

Density: Higher density graphite is typically stronger and more resistant to oxidation.

Porosity: Lower porosity reduces gas permeability and improves resistance to impregnation by binder materials.

Strength: The flexural strength and compressive strength must be adequate to withstand the applied pressure.

Electrical Resistivity: The resistivity influences the heating rate and temperature distribution.

Ash Content: Lower ash content reduces the risk of contamination of the diamond composite.

Coefficient of Thermal Expansion (CTE): A lower CTE is generally desirable to minimize dimensional changes.

Common Graphite Grades

Isostatically Pressed Graphite: Offers high density, fine grain size, and uniform properties. It is often preferred for high-precision dies.

Molded Graphite: Less expensive than isostatic graphite, but may have lower density and less uniform properties.

Extruded Graphite: Suitable for simpler shapes and lower-pressure applications.

Oxidation Protection

A major challenge is oxidation of the graphite at high temperatures in the presence of air or oxygen. This can lead to:

Material Loss: The graphite slowly burns away, reducing the die's dimensions and strength.

Surface Degradation: Oxidation roughens the surface, which can affect the quality of the diamond composite.

Contamination: Oxidation products can contaminate the diamond composite.

Methods for oxidation protection

Inert Atmosphere: Sintering is typically performed in a controlled atmosphere (e.g., argon, nitrogen, or vacuum) to minimize oxygen exposure.

Protective Coatings: Applying coatings to the graphite surface can create a barrier against oxygen. Common coatings include:

Silicon Carbide (SiC): Provides excellent oxidation resistance. Applied by CVD or other techniques.

Pyrolytic Carbon: A dense, layered carbon coating.

Oxidation Inhibitors: Adding small amounts of certain elements (e.g., boron, phosphorus) to the graphite can slow down the oxidation rate.

Proper Handling: Avoid contaminating the graphite with materials that could catalyze oxidation (e.g., alkali metals).

Sealing: Use of ceramic sealants.
